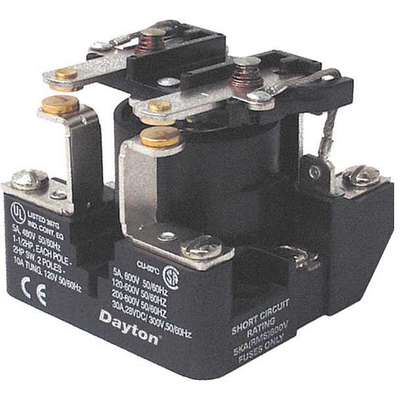

Dayton 120VAC, 6-Pin Surface Open Power Relay; Electrical Connection: Screw

Hover over image to magnify
Relay, Dpst-No, 120 Vac
PI_Asset_1370621

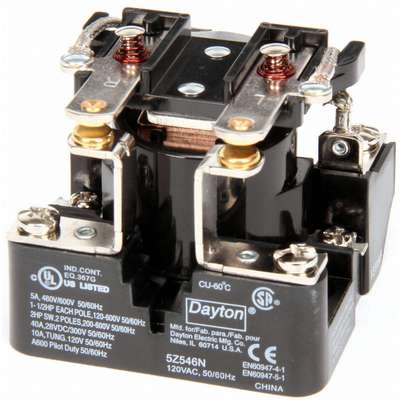

Relay, Dpst-No, 120 Vac
PI_Asset_1370621
Dayton 120VAC, 6-Pin Surface Open Power Relay; Electrical Connection: Screw Video

#911317-2 | Pkg Qty: 1

$39.20 pkg | $39.20 ea

Technical Specifications

Key Specifications
AC Contact Rating
40 A @ 300 V
Input Power Consumption
10.0 VA
Body Depth
2-1/2 in.
Item
Open Power Relay
Body Height
2.3 in.
Mfr. Part Number
5Z546
Body Width
2-1/2 in.
Mounting
Surface
Brand
DAYTON
Number of Pins
6
Coil Rating
Not Rated
Number of Poles
2
Coil Volts
120 VAC
Overall Height
2.3 in.
Contact Form
DPST-NO
Pack Quantity
1
Contact Material
Silver Cadmium Oxide
Pins
6
Contact Rating
40 A @ 300 VAC/28 VDC
Power Relay Style
Open Power Relay
DC Contact Rating
40 A @ 28 V
Relay Power Consumption
10.0 VA
Dimensions
2.30 in.H, 2.50 in.W, 2.50 in.D
Resistive Contact Amp Rating
40A @ 300VAC/28VDC
Electrical Connection
Screw
Shipping Weight
.6 lb.
HP @ 120 V
2002-01-01
Type
Power, Open Style
HP @ 240 V
2002-01-01
General
AC Contact Rating - Relay
40A @ 300V
HP @ 240V
1 1/2
Body Depth - Relay
2.5 in
Mounting - Power Relay
Surface
Body Height - Relay
2.3 in
Mounting - Relay
Surface
Body Width - Relay
2.5 in
Number of Pins - Relay
6
Contact Form - Relay
DPST-NO
Overall Height - Relay
2.3 in
DC Contact Rating - Relay
40A @ 28V
Power Consumption - Relay
10.0 VA
Electrical Connection - Power Relay
Screw
Standards
E40944
HP @ 120V
1 1/2

Product Description

The Dayton® open power relay is used for switching motor loads in applications such as elevators, machine tools, air handling, and HVAC equipment. Silver alloy, self-wiping contacts. Molded thermoset plastic base. Minimum operating voltage for AC relays is 85% of nominal voltage. 0.75 power factor. CSA Certified, and CE Certified.

Compliance & Restrictions

California Proposition 65 Icon
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
9113172
Relay, Dpst-No, 120 Vac
  Name Item Description
Grainger Dropship Grainger Dropship 5Z546 RELAY, DPST- NO, 120 VAC
UNSPSC CODES UNSPSC CODES 39122324
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009
