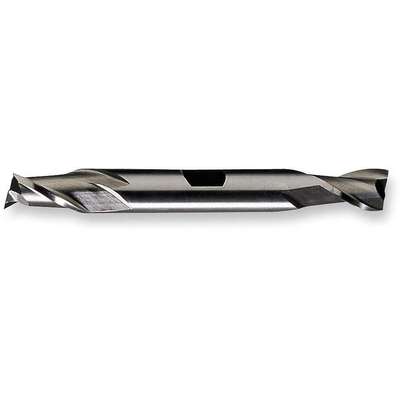

Square End Mill, 5/16" Milling Diameter, Number of Flutes: 2, 9/16" Length of Cut, Bright (Uncoated)

Hover over image to magnify
End Mill 5/16D, 2FL Dbl Ended
End Mill 5/16D, 2FL Dbl Ended
Square End Mill, 5/16" Milling Diameter, Number of Flutes: 2, 9/16" Length of Cut, Bright (Uncoated) Video

#910955-1 | Pkg Qty: 1

$37.34 pkg | $37.34 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
CLEVELAND
Helix Angle
30 deg.
Chip-Breaker
No
Item
Square End Mill
Corner Radius
0.000 in.
Length of Cut
9/16 in.
Cut
Right Hand
List Number
HDC-2
Cutting Direction
Right
Material
Cobalt
Cutting Direction
Right Hand
Mfr. Part Number
C52157
Cutting Type
Center
Milling Diameter
5/16 in.
Diameter
5/16 in.
Neck Length
Not Applicable
Dimension Type
Fractional Inch
Number of Flutes
2
End
Double
Overall Length
3-1/2 in.
End Mill Application
Finishing
Pack Quantity
1
End Mill Cutting Type
Center Cutting
Primary Material Application
Nickel, Stainless Steel, Titanium
End Mill Material
Cobalt
Shank Diameter
3/8 in.
End Style
Square
Shipping Weight
0.05 lb.
Finish
Bright (Uncoated)
Single End/Double End
Double End
Grade
General Purpose
Type
Standard
General
Application
For Slotting Cuts on Cobalt, Nickel, Austenitic Based or Austenitic Alloys, High Tensile Steels 40 to 55 HrC, Stainless Steel and Titanium Alloys
Measurement System
Fractional Inch
Drilling Tool Configuration
Individual
Milling Dia.
5/16 in
End Mill Style
Square
Miniature End Mill
No
Finish - Machining
Bright (Uncoated)
Primary Material Application ISO Code
M, S
Material - Machining
Cobalt
Shank Dia.
3/8 in
Material Grade - Machining
General Purpose
Shank Type - Machining
Weldon Flat

Product Description

The bright finish on these end mills provides a smooth, polished surface. Finishing end mills create a finer finish on the workpiece than roughing and roughing/finishing end mills. Double-end end mills have a nose on both their ends and can accomplish more milling tasks than single-end end mills before they need to be replaced.
