CENTURY

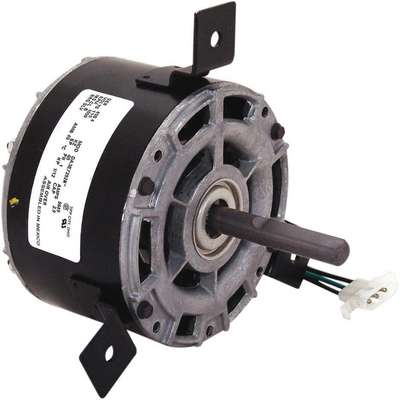

Century Direct Drive Motor, Shaded Pole, Broan OEM Replacement Brand, 1- Phase, 1/12 HP

Hover over image to magnify
Ao Smith Motor 1/12 Hp 1050RPM
Ao Smith Motor 1/12 Hp 1050RPM

#910822-2 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
Alternate Products
Mtr,3 Ph,1.5 Hp,1725,208-230/
$379.76 pkg | $379.76 ea
Item: 914627-1
Pkg Qty: 1

Technical Specifications

Key Specifications
Bearings
Sleeve
NEMA/IEC Frame
42Y
Brand
CENTURY
Nameplate RPM
1050
Enclosure
Open Air-Over
Number of Speeds
1
Frame
42Y
Overall Length
5-15/16 in.
Full Load Amps
2.9
Pack Quantity
1
Hz
60
Phase
Single
Insulation Class
A
Replacement For
Broan 99080178, Fasco 7151-3160, Fasco D1087, Universal Electric DA3E278
Item
OEM Replacement Motor
Rotation
CCWLE
Length Less Shaft
3-1/4 in.
Service Factor
1
Mfr. Part Number
9649
Shaft Length
2-11/16 in.
Motor Design
Shaded Pole
Shipping Weight
7.05 lb.
Motor Type
Shaded Pole
Thermal Protection
Auto
Mounting
Lug
Voltage
115 VAC
General
Application
Broan
Motor Service Factor
1
Body Dia.
5 in
Motor Shaft Design
Flat
Bolt Circle Dia.
6 3/4 in
Motor Shaft Rotation
CCWLE
Capacitor Required
No
Motor Sub Application
Direct Drive Fan/Blower
HP
1/12
Motor Thermal Protection
Auto
Ins. Class
A
No. of Speeds
1
Max. Ambient Temp.
40 °C
Number of Shafts
1
Motor Application
OEM Replacement
RPM Range
1,001-1,100
Motor Bearings
Sleeve
Shaft Dia.
1/2 in
Motor Enclosure Design
Open Air-Over
Standards
CSA, UL Recognized
Motor Frame Material
Steel
Usable @ 200V
No
Motor Mounting Position
Horizontal
Usable @ 208V
No
Motor Mounting Type
Lug
Voltage Compatibility
115V AC, 120V AC

Product Description

OEM replacement AC motors extend equipment life by replacing old or damaged HVAC motors in ventilators, fans, and blowers. They match the equipment's existing motor from the original manufacturer to ensure consistent performance and correct installation.
