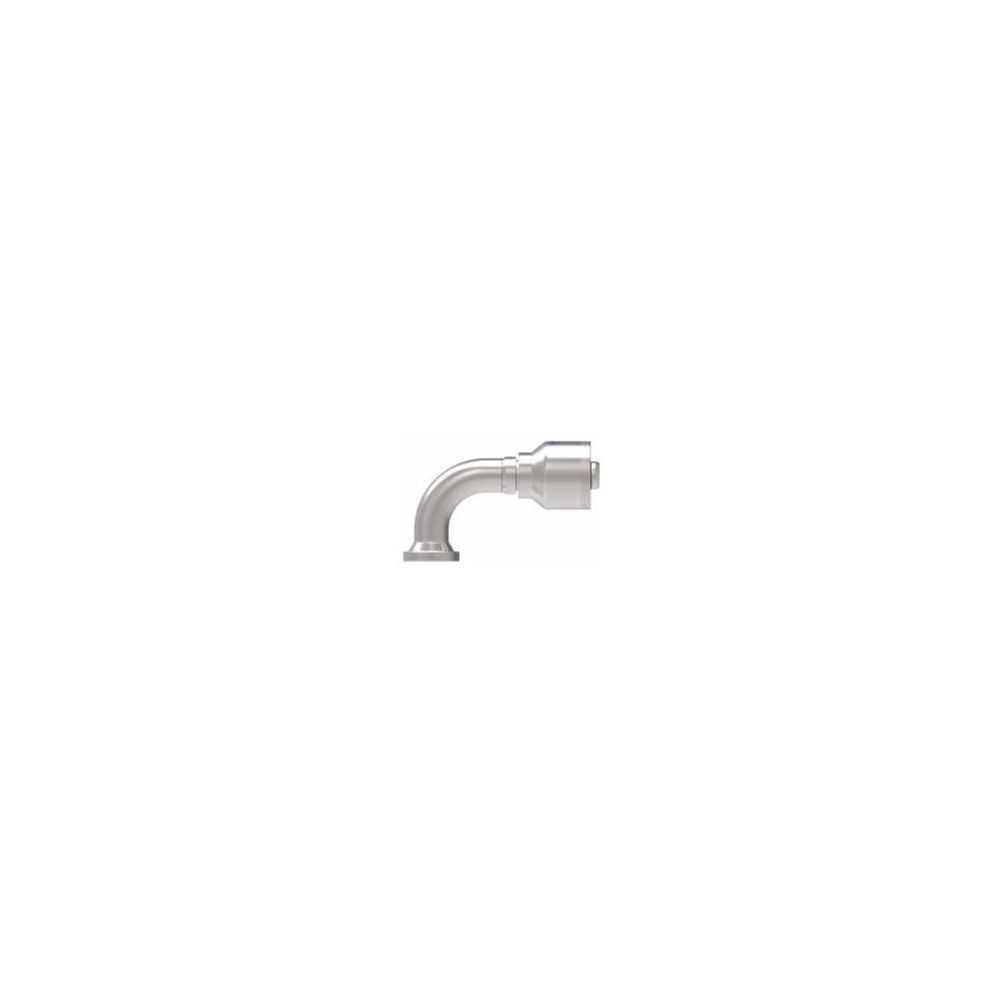

Crimp End 4S16Flb12 90 Degree Elbow

Hover over image to magnify
4S Crimp End 4S16FLB12
4S Crimp End 4S16FLB12

#493233 | Pkg Qty: 1

Item Number 493233
Scanner Description 4S Crimp End 4S16FLB12
Inventory Status Estimated business days to ship: 20
Weight 1.38 lb
Brand EATON
Catalog H17

Technical Specifications

Brand
EATON
Hose Inside Diameter
3/4 in.
Connection Type
Split Flange
Item
Crimp End
Finish
Dura-Kote
Material
Carbon Steel
Fitting Style
CRIMP
Pack Quantity
1
For Use With
H430-12, H430R-12, H44-12, H471-12, EC600-12, EC525-12, EC810-12
System of Measurement
Fractional
Hose Cutoff Factor
2.15 in.

Product Description

  • SAE Code 61 Flange (FLB) 90° Elbow, 4S series
  • One Piece Non-Skive Fitting - Reduces errors for matching correct socket with nipple
  • Non-Brazed (one-piece machined) nipples - Eliminates possiblility of braze joint failures in the field
  • "Captive" terminal end nuts - Reduces chance of damage from over-torquing during hose assembly installation
  • Smaller Profile fitting design - Easier to install hose assembly in tight spaces
  • MatchMate Spiral System - Hose and fittings are marked to prevent chance of errors when selecting the correct hose and fitting to be crimped together
  • Standardization - Meets / exceeds global industry specifications
  • DURA-KOTE Plating - Eaton's next generation plating provides up to 1000 hours of corrosion resistance, far exceeding SAE J514 specifications.
Item Barcode
4932330
  Name Item Description
WEATHERHEAD WEATHERHEAD 4S16BLB12 CRIMP END 4S16FLB12
Grainger Dropship Grainger Dropship 471Z96 CRIMP END 4S16FLB12
UNSPSC CODES UNSPSC CODES 27121700
VMRS (ATA) CODES VMRS (ATA) CODES 053-008-004 CRIMP END 4S16FLB12
