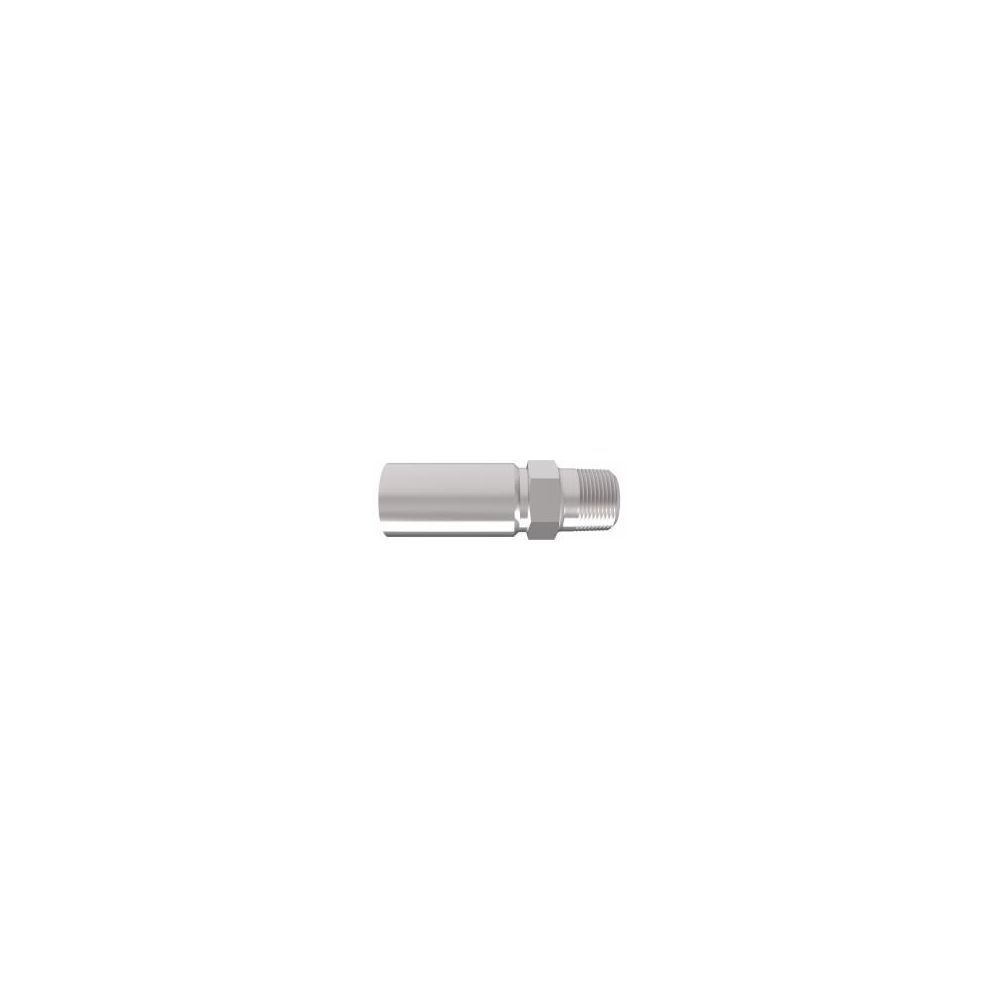

Eaton Weatherhead Crimp Fitting, 16Z-166, Straight British Standard (BSPT) Tapered Male Pipe Rigid, 1" x 1"

Hover over image to magnify
16Z-166 1x1 Mrgd Bspt St
16Z-166 1x1 Mrgd Bspt St

#293260 | Pkg Qty: 1

Loading Stock Status...

Item Number 293260
Scanner Description 16Z-166 1x1 Mrgd Bspt St
Inventory Status Estimated business days to ship: 18
Brand EATON WEATHERHEAD
Trade Name WEATHERGRIP
Catalog H16

Technical Specifications

Application
General purpose low, medium and high pressure hydraulics.
Pack Quantity
1
Brand
EATON WEATHERHEAD
Series
Z-Series
Compatible Hose Styles
H180, H145, H145R, H190, H190H, H280, H290, H290H, H290L, EC115, EC215
Shape
Straight
Finish
Dura-Kote
Style
British Standard (BSPT) Tapered Male Pipe Rigid
For Pipe Size
1 in.
System of Measurement
Fractional
Hose Cutoff Factor
1.84 in.
Thread Size
R 1"-11
Hose Inside Diameter
1 in.
Trade Name
WEATHERGRIP
Item
Crimp Fitting
Tube Size
1 in.
Material
Carbon Steel
Working Pressure
Determined by the maximum working pressure for hose size and hose end configuration, whichever is lesser.

Product Description

  • Eaton Weatherhead's Z-Series Braided Hose Fittings are engineered for high pressure hydraulic systems.
  • DURA-KOTE™ plating technology provides up to 1,000 hours of corrosion resistance.
  • Bite the wire technology offers best in class connection and sealing.
  • Low profile and short socket design offers greater routing flexibility.
  • Class zero leakage SAE J1176 on approved hose styles.
  • Over 550 part numbers available with a wide variety of metric and imperial threaded terminal ends.
  • Eaton's MatchMate™ program provides identification markings on the hose, hose ends and crimp dies for quick and easy assembly.
Item Barcode
2932600
  Name Item Description
WEATHERHEAD WEATHERHEAD 16Z-166 CRIMP END 16Z-166
UNSPSC CODES UNSPSC CODES 27121700
VMRS (ATA) CODES VMRS (ATA) CODES 053-008-004 CRIMP END 16Z-166
