Home All Products Hydraulics Hydraulic Hose Assembly Components Eaton Hose Ends WeatherGRIP Z-Series Female For-Seal Swivel Medium Drop 90 Degree Tube Elbow SKU: 292966

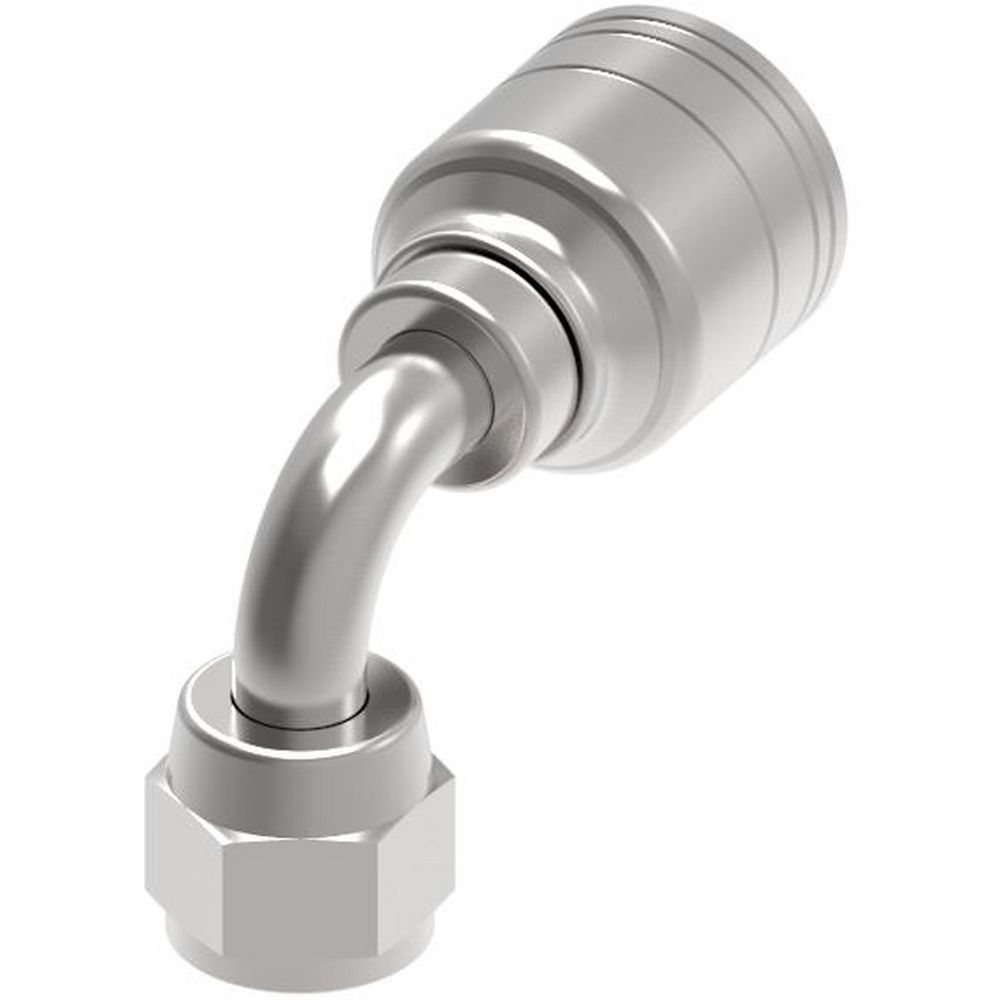

Eaton Weatherhead Crimp Fitting, 04Z-J38, 90° Elbow (Medium Drop) For-Seal® Female Swivel, 1/4 in. x 1/2 in.

Item Number 292966
Scanner Description 04Z-J38 1/4x1/2FMSW Frsl 90EM
Weight 0.21 lb
Brand EATON WEATHERHEAD
Trade Name WEATHERGRIP
Pkg Qty: 1

Add to List

Technical Specifications

Application General purpose low, medium and high pressure hydraulics.   Series Z-Series
Brand EATON WEATHERHEAD   Shape 90° Elbow (Medium Drop)
Compatible Hose Styles H180, H145, H145R, H190, H190H, H280, H290, H290H, H290L, EC115, EC215   Style FOR-SEAL® Female Swivel
Finish Dura-Kote   System of Measurement Fractional
Hose Cutoff Factor 1.41 in.   Thread Size 13/16"-16
Hose I.D. 1/4 in.   Trade Name WEATHERGRIP
Item Crimp Fitting   Tube Size 1/2 in.
Material Carbon Steel   Working Pressure (PSI) Determined by the maximum working pressure for hose size and hose end configuration, whichever is lesser.
Pack Quantity 1

Product Description

  • Eaton Weatherhead's Z-Series Braided Hose Fittings are engineered for high pressure hydraulic systems.
  • DURA-KOTE™ plating technology provides up to 1,000 hours of corrosion resistance.
  • Bite the wire technology offers best in class connection and sealing.
  • Low profile and short socket design offers greater routing flexibility.
  • Class zero leakage SAE J1176 on approved hose styles.
  • Over 550 part numbers available with a wide variety of metric and imperial threaded terminal ends.
  • Eaton's MatchMate™ program provides identification markings on the hose, hose ends and crimp dies for quick and easy assembly.
Item Barcode
2929660
  • Cross References
  • Legal
  Name Item Description
WEATHERHEAD WEATHERHEAD 04Z-J38
UNSPSC CODES UNSPSC CODES 27121700
VMRS (ATA) CODES VMRS (ATA) CODES 053-008-004 CRIMP END 04Z-J38
