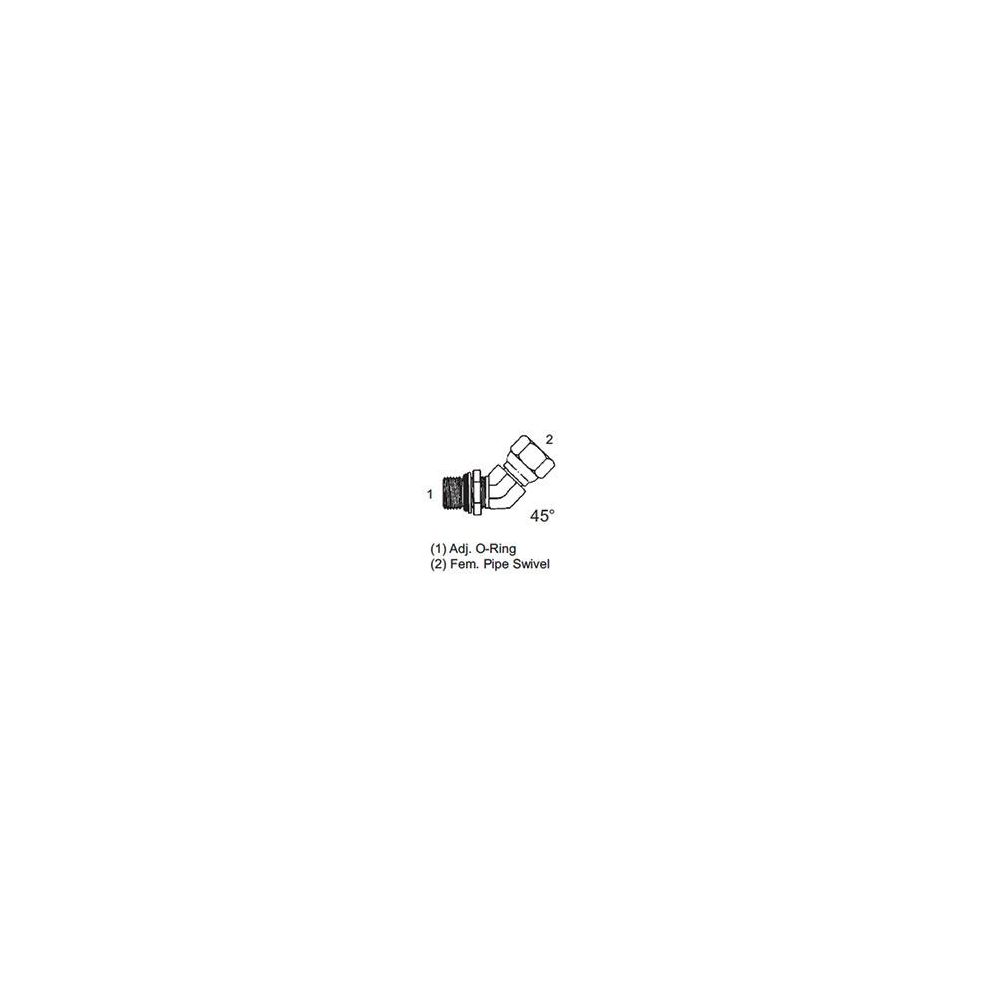

Male Boss O-ring (ORB) to Female NPSM 1/2 in. x 3/8 in.
Hover over image to magnify
Technical Specifications
Angle
45 deg.
Fitting Material
Carbon Steel
Body Hex Nut Size
7/8 in.
Fitting Shape
45°
Body Hex Size
3/4 in.
Fitting Style
Boss (ORB) to NPSM
Brand
APPROVED SUPPLIER
Fitting Type
MORB X FPX 45°
Connection Type
Male ORB to Female Pipe Swivel
Item
Swivel Adapter
Eaton/Aeroquip Cross
2067-6-8S
Material
Carbon Steel
Finish
Trivalent Zinc Plated
Meets Standards
SAE
Fitting Connection (A) Gender
Male
Operating Pressure
3500
Fitting Connection (A) Port Size
1/2 in.
Package Quantity
1
Fitting Connection (A) Port Thread Size
3/4-16 in.
Pressure Connection Cross
6902-08-06-4
Fitting Connection (A) Style
Boss Oring (ORB)
Shape
45
Fitting Connection (B) Gender
Female
Swivel Pipe Size
3/8"-18
Fitting Connection (B) Pipe Size
3/8 in.
System of Measurement
Fractional
Fitting Connection (B) Pipe Thread Size
3/8-18 in.
Weatherhead Cross
9365X8X6
Fitting Connection (B) Style
NPSM
Working Pressure
4000 psi
Fitting Finish
Zinc; Clear Trivalent Chromate
Product Description
Typical Applications:
- High Pressure Hydraulic, Pneumatic, and Chemical Processing.
- O-ring sealing provides a more reliable connection seal than other connections.
- Fitting style also known as ORB, ASE Boss O-ring, Boss O-ring, SAE-ORB, and O-ring Boss fittings.
- NPSM Swivel seal is between the male 30° nose of the swivel mating to the 30° inverted chamfer on the NPT/NPTF pipe fitting.
Item Barcode
O-Ring To F P Swiv 45° 1/2X3/8
| Name | Item | Description | |
|---|---|---|---|
 | UNSPSC CODES | 40183101 | |
 | VMRS (ATA) CODES | 053-008-004 | O-RING TO F P SWIV 45^ 1/2X3/8 |
