Jic Swl Nut Elb 1/2X3/8

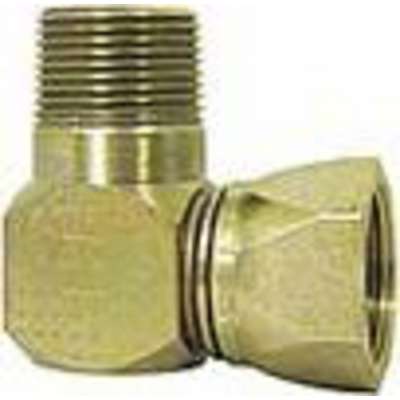

JIC Swl Nut Elbow 1/2X3/8

Item Number 97242
Scanner Description Jic Swl Nut Elb 1/2X3/8
Weight 1.5 lb
Brand APPROVED SUPPLIER
Catalog F20
Pkg Qty: 5

Add to List

Technical Specifications

Angle 90 deg.   Pipe Thread 3/8 in.
Brand APPROVED SUPPLIER   Shape Swivel Nut Elbow
Connection Type Male   System of Measurement Fractional
DOT Approved No   Temperature Range (Deg F) -65 to +400 deg. F
Finish Trivalent Zinc Plated   Thread Size 3/4"-16
Fitting Style Flared Fitting   Thread Style SAE
Fitting Type JIC   Tube Flare 37 deg.
Grade 12L14   Tube Outside Diameter 1/2 in.
Heat Treated No   Vibration Resistance Good
Item Flared Fitting   Working Pressure Up to 6,000 psi
Material Carbon Steel - AISI/SAE 12L14

Product Description

  • Working pressure up to 10,000 psi, depending on tube and fitting size.
  • Used with copper, brass, steel, aluminum, and other tubing that can be flared.
  • Applications include medium and high pressure lines on heavy construction, agricultural, and transportation equipment.
  • Meets or exceeds ASA, ASME, SAE, and MS specifications.
  • Good resistance to vibration. Use two or three piece nut design where greater vibration resistance is required.
  • Tube Outside Diameter: 1/2
  • Thread Size: 3/4–16
  • Pipe Thread: 3/8
  • Cross Reference: TF5406 x 8
  • Assembly Instructions:
    1. Slide nut on tubing. Threaded end of nut must face out.
    2. Slide sleeve on tubing (3-piece assembly). Collar end of sleeve must face out.
    3. Flare tubing and check flare diameter. Examine for excessive thin-out. On thin wall tubing, use double flare to prevent pinch-off.
    4. Assemble tubing to fitting body. Tube nut should be turned hand tight.
    5. Tighten assembly with a wrench.
SAE 37° (JIC) Steel Fitting IllustrationSAE 37° (JIC) Steel Fitting Illustration

Item Barcode

0972420
  Name Item Description
WEATHERHEAD WEATHERHEAD TF5406X8 STEEL FIT TF5406X8
UNSPSC CODES UNSPSC CODES 40183101 STEEL FIT TF5406X8
VMRS (ATA) CODES VMRS (ATA) CODES 053-008-004 STEEL FIT TF5406X8
