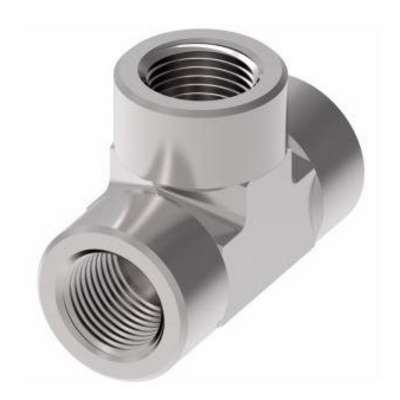

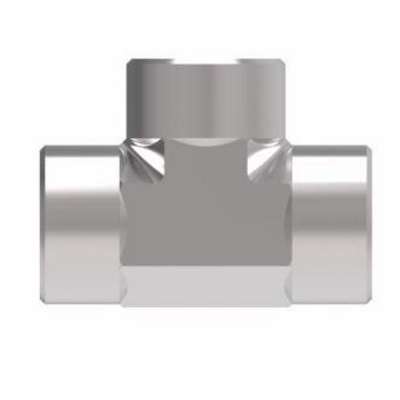

Steel Female Pipe Tee, 1-1/4 in. x 1-1/4 in. X 1-1/4 in.

Hover over image to magnify
Stl Tee 1-1/4"
PI_Asset_1806695
Stl Tee 1-1/4"
PI_Asset_1806695

#97136 | Pkg Qty: 1

In Stock

Shipping to 60045
Catalog: F11

Technical Specifications

Brand
APPROVED SUPPLIER
Fitting Connection (C) Style
NPTF Pipe
Eaton/Aeroquip Cross
2090-20-20S
Fitting Material
Steel
Fitting Connection (A) Gender
Male
Fitting Style
Tee
Fitting Connection (A) Pipe Size
1-1/4 in.
Hex Size
1-7/8
Fitting Connection (A) Pipe Thread Size
1-1/4 - 11 1/2
Package Quantity
1
Fitting Connection (A) Style
NPTF Pipe
Plating
Trivalent Clear Zinc
Fitting Connection (B) Gender
Male
Pressure Connection Cross
5605-20-20-20-4
Fitting Connection (B) Pipe Size
1-1/4 in.
Shipping Weight
1.28 lb.
Fitting Connection (B) Pipe Thread Size
1-1/4 - 11 1/2 in.
System of Measurement
Fractional
Fitting Connection (B) Style
NPTF Pipe
Temperature Range (Deg. F)
-65 to 500 deg. F
Fitting Connection (C) Gender
Male
Vibration Resistance
Fair
Fitting Connection (C) Pipe Size
1-1/4 in.
Weatherhead Cross
C3709X20
Fitting Connection (C) Pipe Thread Size
1-1/4 - 11 1/2 in.

Product Description

Typical Applications: Gasoline, instrumentation, power steering, air brake, pneumatic, diesel, propane, and natural gas lines. • It is recommended to always use thread sealant or tape on tapered pipe threads.
• Tapered pipe thread seal on wedging contact between threads. The more you tighten the tighter the seals.
• Pipe threads are the most common fitting style used in the United States and Canada. • The difference between NPT and NPTF is the root and crest tolerances. • Imperial pipe fittings are made to NPTF (National Pipe Thread Fuel) specifications.
