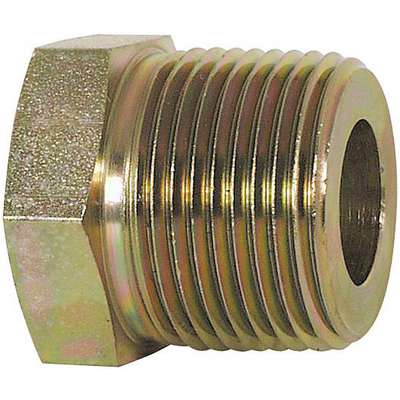

1/4"-18 x 1/8"-27 Bushing with MNPT x FNPT Fitting Connection Type and 3000 psi Max. Pressure
High Pressure Steel Bushing Pipe Fitting
- Working Pressure Up To 3,000 Psi. Proof Test Rating 15,000 PSI In Sizes Up To 1".
- Tighten Approximately 2-1/2 Full Turns Past Hand Tight.
- Applications Include: Air, Gas, Oil And Hydraulic Lines, And Coolant Systems.
- Precision Machined From Aisi 12L14 Carbon Steel.
- Compact Size; Excellent Wrench Pads.
- Dryseal Pipe Threads.
- Meets Or Exceeds All Sae Standards.
- Temperature Range: -65° F. To 400° F.
- Pipe Thread: 1/4-18 X 1/8-27
- Cross Reference: C3109 X 4 X 2
|WEATHERHEAD||C3109X4X2||STL PIPE HP C3109X4X2|
|UNSPSC CODES||40170000||Pipe piping and pipe fittings|
|VMRS (ATA) CODES||053-008-004||STL PIPE HP C3109X4X2|
