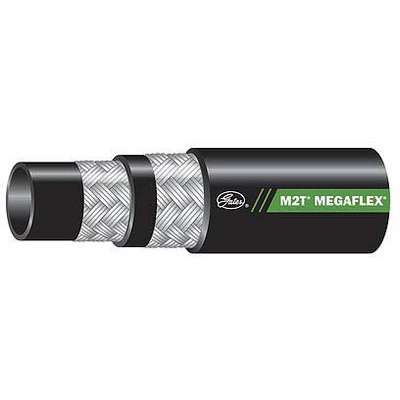

Gates 50 ft. M2T MegaFlex High Pressure Hydraulic Hose; 5/8" Hose I.D., 3800 psi Max. Working Pressure
Hover over image to magnify
Technical Specifications
Brand
GATES
Meets Standards
EN 853 2SN, EN 857 2SC, ISO 11237 2SC R16, ISO 1436 2SN R2, SAE 100R16, SAE 100R2
Color Family
Black
Minimum Bend Radius
3 in.
Cover Material
Neoprene
Minimum Burst Pressure
15200 psi
Hose Inside Diameter
5/8 in.
Pack Quantity
50
Hose Length
50 ft.
Reinforcement Material
Two Braids, High-Tensile Steel Wire
Hose Outside Diameter
0.95 in.
Temperature Range (Deg. F)
-40 to 212 deg. F
Hose Series
M2T MegaFlex
Trade Name
M2T MEGAFLEX
Inner Tube Material
Nitrile - Type C
Working Pressure
3800 psi
Item
High Pressure Hydraulic Hose
Product Description
Gates® M2T® Megaflex® High Pressure Hose
- Megaflex Hyduraulic Hose
- Exceeds SAE 100R16.
- Meets Flame Resistance Acceptance Designation "Msha 2G"
- Temperature Range: -40° F To 212° F (-40° C To 100° C)
- Hose Construction: Black, oil, abrasion and weather resistant MegaTuff® cover with color coded layline
- Inner Tube: Synthetic Rubber (Nitrile -Type C)
- Reinforcement: Two Braids Of High Tensile Steel
- Cover: Oil, Abrasion And Weather Resistant, Synthetic Rubber (Modified Nitrile)
- Hose Inside Diameter: 5/8"
- Hose Outside Diameter: 0.95"
- Minimum Burst Pressure: 15,200 Psi
- Minimum Bend Radius: 3"
- Cross Reference: 10M2T-MTF-50FT
Item Barcode
10M2T-MTFX50FT 5/8" Hp Hose
| Name | Item | Description | |
|---|---|---|---|
|
Gates Rubber Company | 10M2T-MTFX50FT | |
|
|
Gates Rubber Company | 46574037 | |
|
|
Gates Rubber Company | 85537 | |
|
UNSPSC CODES | 27121700 | |
|
VMRS (ATA) CODES | 053-008-003 | M2T MEGAFLEX 10M2T-MTFX50 |
