Tube Nsf Food Bevrg 3/4"X300'

Item Number 92327
Scanner Description Tube Nsf Food Bevrg 3/4"X300'
Weight 66 lb
Brand APPROVED SUPPLIER
Catalog F33
Pkg Qty: 300

Add to List

Technical Specifications

Brand APPROVED SUPPLIER   System of Measurement Fractional
Inside Diameter 3/4 in.   Temperature Range (Deg F) +25 to +150 deg. F
Item Food and Beverage Grade Tubing   Tube Color Blue
Length 300 ft.   Tube Length 300 ft.
Outside Diameter 1.031 in.   Tubing Material Non-Toxic PVC
Pack Quantity 300   Working Pressure (PSI) 150/1.03 psi
Size Code 12

Product Description

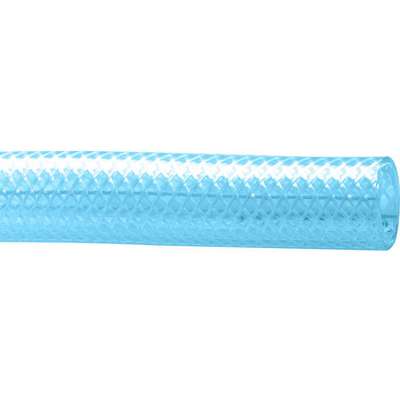

  • Blue tinted cover and tube compounded from Non-Toxic PVC ingredients in compliance with applicable FDA requirements.
  • Reinforced with spiraled polyester yarn and with multiple longitudinal polyester yarn (orange yarn for identification) to reduce elongation under pressure.
  • USDA-Accepted for use in slaughtering, processing, transporting, or storage areas in direct contact with meat or poultry food product prepared under Federal Inspection.
  • Hose is composed of non-toxic chemicals making it ozone resistant, self-extinguishing, lightweight, non-marking, and chemical resistant.
  • The hose is crystal clear with a glass smooth interior.
  • Service Temperature Range: 25° F. to 150° F. (-4° C. to 65° C.)
  • Size Code: 12
  • Nominal Inside Diameter: 3/4
  • Nominal Outside Diameter: 1.031"
  • Maximum Working Pressure: at 70° F. (20° C.) 150 psi, 1.03 MPa
  • Maximum Working Pressure: at 122° F. (50° C.) 85 psi, 0.58 MPa
  • Food and Beverage Applications:
    • Portable water transfer lines
    • Transfer of powdered foods
    • Food and beverage dispensing applications where polyvinyl chloride is compatible with the media to be conveyed.
  • Industrial Applications:
    • Pneumatic lines
    • Lubrication lines
    • Air and water lines
    • Packaging machines
    • Air breathing lines
    • Glue lines
    • Deionized water systems
    • Vacuum lines (call factory for rating)
  • NOTE: Working pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Complies with the criteria in 3-A sanitary standards for multiple-use plastic materials used as product contact surfaces for dairy equipment, number 20-17 as amended.
Item Barcode
0923270
  Name Item Description
UNSPSC CODES UNSPSC CODES 27121700 FOOD & BEV. NSF HOSE 3/4
VMRS (ATA) CODES VMRS (ATA) CODES 053-008-003 FOOD & BEV. NSF HOSE 3/4
