Technical Specifications
Brand
EATON
Mfr. Part Number
24706N-306
Connection Type
Male
Pack Quantity
10
Finish
Zinc Yellow
Series
247 N
Fitting Style
Rigid
System of Measurement
Fractional
Grade
12L14
Thread Size
5/8"-18
Hose Cutoff Factor
1.28 in.
Thread Type
SAE
Hose Hex Size
13/16 in.
Tube Flare
45 deg.
Hose Inside Diameter
5/16 in.
Tube Size
3/8 in.
Item
Field Attachable Hose End
Tube/Pipe Hex Size
11/16 in.
Material
Carbon Steel
Working Pressure
Determined by maximum working pressure for hose size and hose end configuration whichever is lesser
Product Description

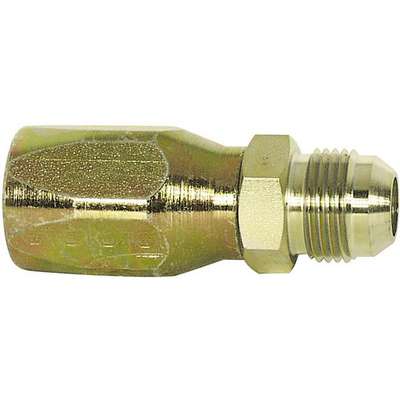

Field Attachable 247 N Series Hose End
- 247 N Field Attachable Hose End.
- SAE 45° Flare Male Rigid.
- Made Of Aisi/Sae 12L14 Carbon Steel.
- Zinc; Yellow Finish.
- Hose Inside Diameter: 5/16
- Tube Size: 3/8
- Thread Size: 5/8-18
- Cut-Off Factor: 1-1/4
- Cross Reference: 24706N-306
- For SAE 45° Connection Only.
- Applications: Medium Pressure And High Temperature Hose Lines.
- For Use With: H059, H069, H166, H169, H229, H366 & H569 Hose.
Item Barcode
Male Rigid 5/16X3/8
| Name | Item | Description | |
|---|---|---|---|
|
WEATHERHEAD | 24706N-306 | HOSE END MED 24706N-306 |
|
UNSPSC CODES | 27121700 | HOSE END MED 24706N-306 |
|
VMRS (ATA) CODES | 053-008-004 | HOSE END MED 24706N-306 |
