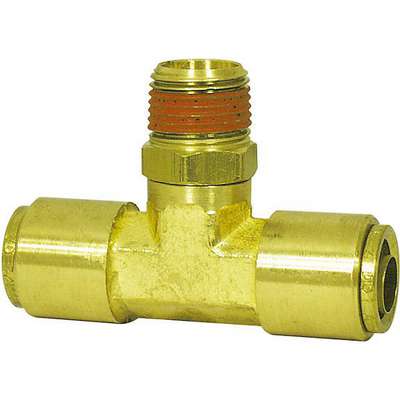

DOT Approved Swivel Male Branch Tee, Air Brake Push-To-Connect Fitting, Brass, 1/2"
Hover over image to magnify
Technical Specifications
Brand
APPROVED SUPPLIER
Meets Standards
D.O.T. FMVSS 571.106 and SAE J1131
Connection Type
Male
Pack Quantity
1
DOT Approved
Yes
Shape
Branch Tee
Fitting Style
Swivel
Shipping Weight
0.39 lb.
Fitting Type
Push-To-Connect
System of Measurement
Fractional
Gasket Material
Ethylene Propylene
Temperature Range (Deg. F)
-40 to +200 deg. F
Grade
CA360
Tube Outside Diameter
1/2 in.
Item
Air Brake
Vibration Resistance
Moderate
Material
Brass
Working Pressure
Up to 150 psi
Product Description
Push To Connect Male Branch Tee
- Quick Disconnect Simply Push Tubing In, No Tools Or Loose Parts To Handle In Tight Places.
- Full Flow Design, Provides Up To 60% More Flow Area Than Conventional Fittings With Internal Tube Supports.
- Brass Construction. Elbows And Tees Are Forged Brass.
- Swivel Elbow And Tees For Ease Of Orientation.
- Pre-Applied PTFE Based Pipe Sealant On All Male Pipe Threads.
- Dot Approved.
- Typical Applications: Windows, Door Locks, Mirrors, Wipers, Air Operated Seats, Operating Gauges, Air Horns, Heater Controls, Gear Shifts, Fifth Wheels, And Air Brake Connections.
- Working Pressure: 250 Psi
- Temperature Range: -20° F. To 200° F.
- Applicable Standards: Fmvss-106
- For Use With: J844 Type A And B.
- Tube Outside Diameter: 1/2
- Male Thread: 1/2
| Assembly | Disassembly |
 |  |
| Insert tube end into fitting, sliding I.D. of the tube over insert (friction is felt as tube slides past O-Ring). Continue to push tube in until it bottoms out. | Use thumb and forefinger to disconnect tube. Hold down the top of the insert against the fitting body and pull out the tubing with the other hand. No tools needed. |
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
A/B Push Ml Branch Tee 1/2
| Name | Item | Description | |
|---|---|---|---|
|
WEATHERHEAD | 1872x8x8S | A/B ML BRANC TEE SWL 1/2 |
|
UNSPSC CODES | 27131600 | Air fittings and connectors |
|
VMRS (ATA) CODES | 053-008-004 | A/B TEE 1/2 X 1/2 |
