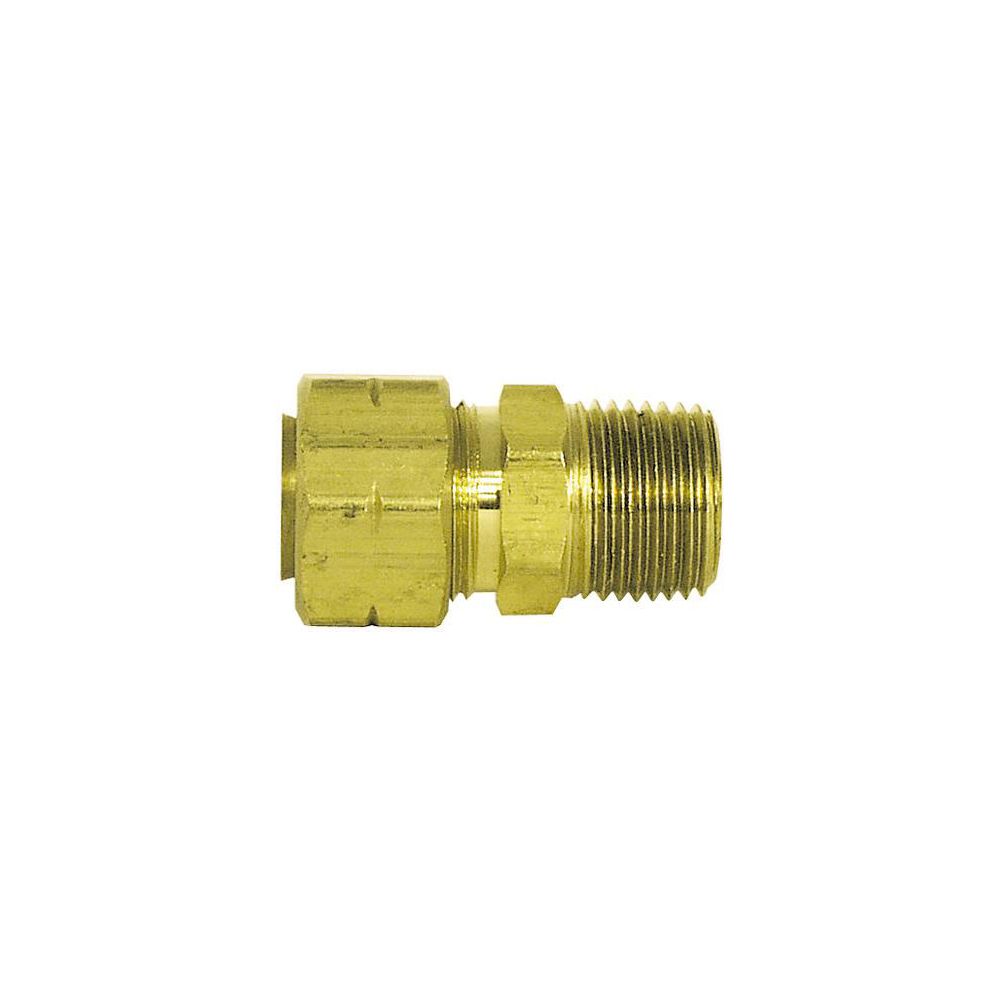

PMAlign Male Connector 1/4" x 1/4"

Zoom Icon

PMAlign Male Connector 1/4" x 1/4"

#91134 | Pkg Qty: 10
Item Number 91134
Scanner Description Pmalign Ml Con 1/4X1/4
Inventory Status In Stock
Weight 0.48 lb
Brand APPROVED SUPPLIER
Catalog F28
California Proposition 65 Icon

Technical Specifications

Body Material
Brass
Pipe Thread
1/4 in.
Brand
APPROVED SUPPLIER
Shape
Connector
Connection Type
Male
System of Measurement
Fractional
DOT Approved
No
Temperature Range (Deg F)
-65 to +250 deg. F
Fitting Style
Captured Sleeve
Thread Size
7/16"-24
Hex Size
9/16 in.
Tube Outside Dia.
1/4 in.
Item
Compression Fitting
Working Pressure (PSI)
Up to 3,000 psi
Pack Quantity
10

Product Description

Brass Compression Fitting Male Connector - Captured Sleeve

  • Reduce Your Labor Costs! Installation Time Is Cut By 40% Over Standard Compression Fittings, And 70% Over Sae 45° Flare Fittings.
  • Use Them On Copper , Aluminum, And Thermoplastic Tubing.
  • Fittings Eliminate "Sleeve Cocking" And Leakage, Creating A More Reliable Connection.
  • The Pressure Rating Is Five To Six Times That Of Most Standard Compression Fittings.
  • They Cover More Than 70% Of All Fitting Requirements (Maximum Working Pressure = 3,000 Psi).
  • Tube Outside Diameter: 1/4
  • Pipe Thread: 1/4
  • Cross Reference: 968A-4B Easy To Install Simply Insert The Tube Until It Bottoms On The Shoulder Of The Fitting. Tighten By Hand. Complete The Seal With One Turn Of The Wrench And Your Connection Is Complete!

Internal Media Links

FITTINGS-CLICK HERE LEARN MORE!

Compliance & Restrictions

Prop 65 WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Item Barcode
0911340
  • Cross References
  • Legal
  Name Item Description
WEATHERHEAD WEATHERHEAD 968A-4B PMALIGN M CN 1/4 X 1/4
UNSPSC CODES UNSPSC CODES 40173301 PMALIGN M CN 1/4 X 1/4
VMRS (ATA) CODES VMRS (ATA) CODES 053-008-004 PMALIGN M CN 1/4 X 1/4
