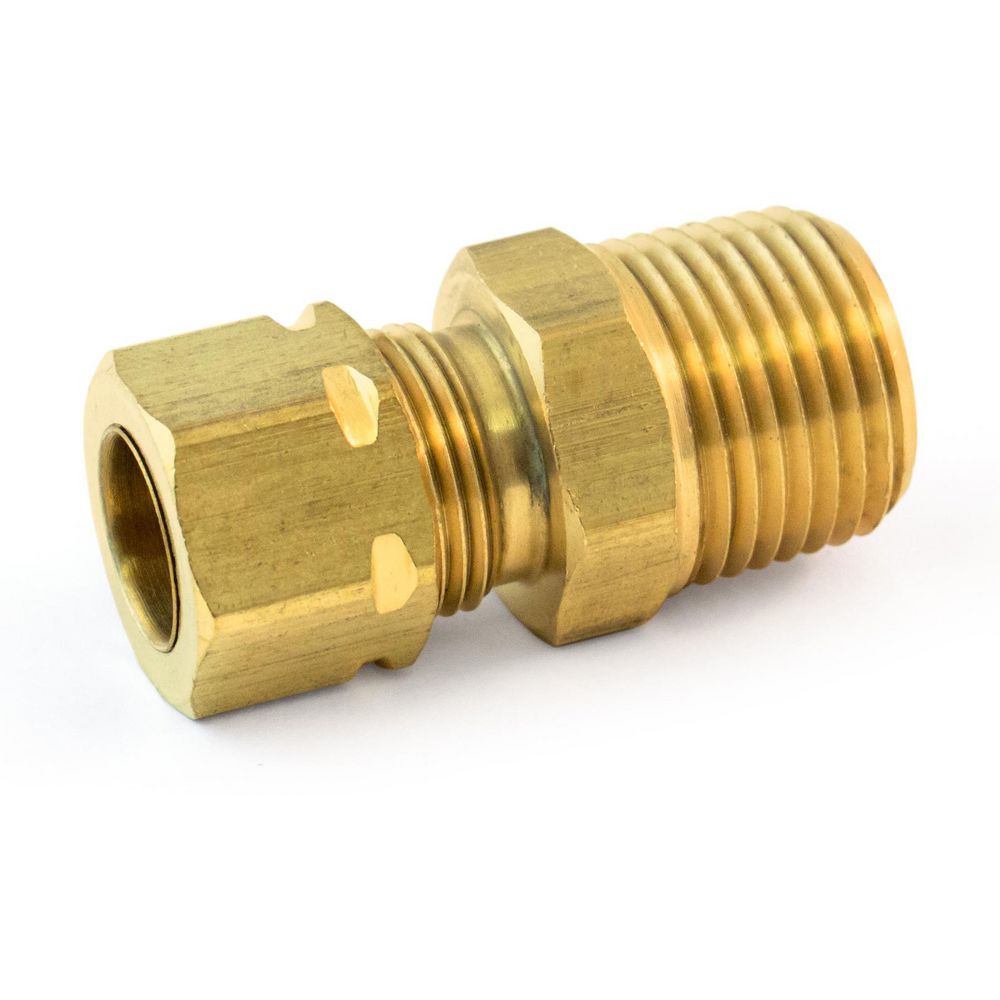

PMAlign Male Connector 1/8" x 1/8"

Hover over image to magnify
Pmalign Ml Con 1/8X1/8
PI_Asset_1088384
Pmalign Ml Con 1/8X1/8
PI_Asset_1088384

#91131 | Pkg Qty: 10

Item Number 91131
Scanner Description Pmalign Ml Con 1/8X1/8
Inventory Status Not currently available. Call your service advisor for availability.
Weight 0.32 lb
Brand APPROVED SUPPLIER
Catalog F28

Technical Specifications

Body Material
Brass
Pipe Thread
1/8 in.
Brand
APPROVED SUPPLIER
Shape
Connector
Connection Type
Male
System of Measurement
Fractional
DOT Approved
No
Temperature Range (Deg. F)
-65 to +250 deg. F
Fitting Style
Captured Sleeve
Thread Size
5/16"-24
Hex Size
11/32 in.
Tube Outside Diameter
1/8 in.
Item
Compression Fitting
Working Pressure
Up to 3,000 psi
Pack Quantity
10

Product Description

Brass Compression Fitting Male Connector - Captured Sleeve
  • Reduce Your Labor Costs! Installation Time Is Cut By 40% Over Standard Compression Fittings, And 70% Over SAE 45° Flare Fittings.
  • Use Them On Copper , Aluminum, And Thermoplastic Tubing.
  • Fittings Eliminate "Sleeve Cocking" And Leakage, Creating A More Reliable Connection.
  • The Pressure Rating Is Five To Six Times That Of Most Standard Compression Fittings.
  • They Cover More Than 70% Of All Fitting Requirements (Maximum Working Pressure = 3,000 Psi).
  • Tube Outside Diameter: 1/8
  • Pipe Thread: 1/8
  • Cross Reference: 968A-2A Easy To Install Simply Insert The Tube Until It Bottoms On The Shoulder Of The Fitting. Tighten By Hand. Complete The Seal With One Turn Of The Wrench And Your Connection Is Complete!

Compliance & Restrictions

Prop 65 WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Item Barcode
0911310
  Name Item Description
WEATHERHEAD WEATHERHEAD 968A-2A PMALIGN M CN 1/8 X 1/8
Grainger Dropship Grainger Dropship 6LJ01 PMALIGN M CN 1/8 X 1/8
UNSPSC CODES UNSPSC CODES 40173301 PMALIGN M CN 1/8 X 1/8
VMRS (ATA) CODES VMRS (ATA) CODES 053-008-004 PMALIGN M CN 1/8 X 1/8
