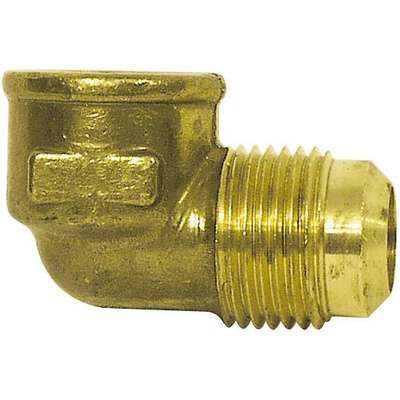

Male 45° Flare to Female NPTF Pipe 90°Elbow 1/2 in. x 3/8 in.

Name: Male 45° Flare to Female NPTF Pipe 90°Elbow 1/2 in. x 3/8 in.
Brand: APPROVED SUPPLIER
SKU: 0902900
Availability: InStock

Hover over image to magnify

#90290 | Pkg Qty: 5

Catalog: F17

Technical Specifications

Brand

APPROVED SUPPLIER

Fitting Connection (B) Style

NPTF Pipe

Eaton/Aeroquip Cross

2002-6-8B

Fitting Material

Brass

Fitting Connection (A) Gender

Male

Fitting Style

90° Female connector

Fitting Connection (A) Style

45° Flare

Package Quantity

Fitting Connection (A) Thread Size

3/4-16

Pressure Connection Cross

50X8

Fitting Connection (A) Tube Size

1/2 in.

Shipping Weight

0.9 lb.

Fitting Connection (B) Gender

Female

System of Measurement

Fractional

Fitting Connection (B) Pipe Size

3/8 in.

Temperature Range (Deg. F)

-65 to +250 deg. F

Fitting Connection (B) Pipe Thread Size

3/8-18 in.

Vibration Resistance

Good

Product Description

Typical Applications: • Gasoline, instrumentation, power steering, air brake, pneumatic, diesel, propane, and natural gas lines. • Brass 45° flare fittings perform to SAE J512 and J513 standards, but dimensions may vary slightly from the actual SAE specifications.
• Flared fitting connections offer a high degree of long-term reliability and can be reused if contact area permits. • Not lead free. • 45° flared fittings seats at the matching seat angles not by the thread contact.
• Use with copper, brass, aluminum, and steel tubing that can be flared.

Compliance & Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Item Barcode

45' Flr Fm Elb 1/2X3/8

Cross References
Legal

Name	Item	Description
WEATHERHEAD	50X8	45 FLR F ELB 50X8
UNSPSC CODES	40173301	45 FLR F ELB 50X8
VMRS (ATA) CODES	053-008-004	45 FLR F ELB 50X8
