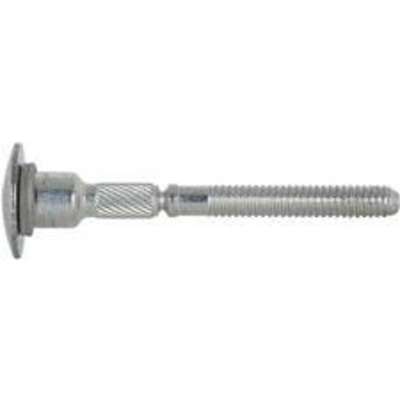

Huck Hucktainer HLPP-R12-16PL, 3/8" Diameter FRP Lockbolt Pin, Standard Low Profile Head with PVC Form Head Seal, Grip Range 0.937 - 1.062", Grade 2 Steel, Zinc Clear, Thick/FRP Cladding, 50 PK
Hover over image to magnify
Technical Specifications
Brand
APPROVED SUPPLIER
Item
Hucktainer
Diameter
3/8
Material
Grade 2 Steel
Finish
Zinc Electroplated, Clear Trivalent Chromate
Maximum Head Diameter
0.83 in.
Grip Range
0.937 in. to 1.062 in.
Mfr. Part Number
HLPP-R12-16
Head Color
Steel
Package Quantity
50
Head Diameter
0.830 in.
Shipping Weight
2.7 lb.
Head Style
Standard Low Profile
Trade Name
HUCKTAINER
Hole Size
0.421 in.
Product Description
Hucktainer® Standard, Low Profile Head Fastener
- Designed To Meet The Requirements Of The Truck Body And Trailer Industries.
- Hucktainers Provide A High Strength, Vibration Resistant, Tamper Proof, Uniform Clamp.
- These Fasteners Will Not Crush Or Craze Frp (Fiberglass Reinforced Plywood) Panels And Are Available With Encapsulated Heads For Maximum Corrosion Resistance.
- PVC Foam Sealant Under The Head Of The Pin Creates A Weatherproof Seal.
- Pin-Lock Is A Nylon "Star" That Retains The Pin In The Hole Prior To Installation And Are Included On Imperial Hucktainers With The "Pl" Suffix On The Huck Reference Number.
- Note: Only Wide Bearing Pin (Hlpe) And/Or Wide Bearing Sleeve (Hlps) Should Be Used Directly Against Frp.
- Grip Range: .937 - 1.062
- Hole Size: .405 - .421
- Maximum Head Width: .830
- Maximum Head Thickness: .180
- Collar Diameter: .396 &Plusmn;. 006
- Under Head To Breakpoint Length: .999
- Under Head To Tip Length: 2.607
- Collar Length: .470
- Huck Cross Reference: Hlpp-R12-16
- Other Grip Ranges, Encapsulated Head Colors, And/Or Encapsulated Head Sizes Available In Bulk Requests.
Compliance & Restrictions
WARNING: This product can expose you to chemicals including Cobalt sulfate, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
Item Barcode
Hucktainer .937-1.062 Grip
| Name | Item | Description | |
|---|---|---|---|
|
UNSPSC CODES | 31162207 | HUCKTAINER HLPP-R12-16 |
|
VMRS (ATA) CODES | 053-007-014 | Rivet |
