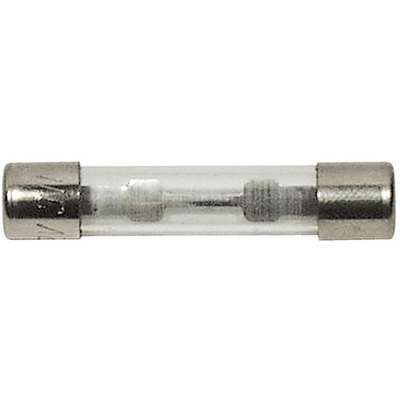

2.5A Fast Acting Glass Fuse with 250VAC, AGC Series

Zoom Icon

#72155 | Pkg Qty: 50

Item Number 72155
Scanner Description Fuses Agc 2-1/2
Inventory Status In Stock
Weight 0.35 lb
Brand LITTELFUSE
Catalog E68

Technical Specifications

Amperage
2-1/2 A
Max. Voltage
250 VAC
Body Material
Glass
Nominal Cold Resistance
0.057 ohm
Brand
LITTELFUSE
Nominal Melting Point
0.00879
Color
Clear
Nominal Voltage Drop
0.31 V
Diameter
1/4 in.
Overall Length
1-1/4 in.
End Cap Material
Nickel-Plated Brass
Pack Quantity
50
Fuse Interrupt Rating
10 kA at 125 VAC; 100A at 250 VAC
Primary Color Family
Clear
Fuse Speed
Fast Acting
Series
AGC
Industry Number
AGC 2-1/2
Standards
UL Listed, meets standard 248-14
Item
Glass Fuse

Product Description

Agc Glass Fuse

  • Each Fuse Is Clearly Marked.
  • Packed In Plastic Boxes.
  • Rated At 250 Volts.
  • Industry Number: Agc 2-1/2
  • Width: 1/4
  • Length: 1-1/4

Compliance & Restrictions

Prop 65 WARNING: This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
Item Barcode
0721550
  Name Item Description
UNSPSC CODES UNSPSC CODES 39121607 FUSES AGC 2-1/2
VMRS (ATA) CODES VMRS (ATA) CODES 034-004-009 FUSES AGC 2-1/2
