2Ga To 4/0 Black Seal-A-Splice Iii 6" Long 25Pk

Hover over image to magnify

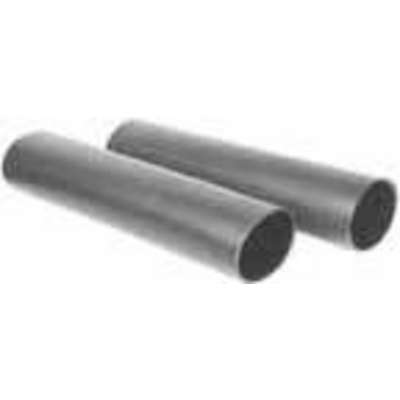

Seal-A-Splice III 1X6 Blk 25PK
Seal-A-Splice III 1X6 Blk 25PK

#71793-4 | Pkg Qty: 25

Technical Specifications

Brand
APPROVED SUPPLIER
Recovered Wall Thickness
0.098 in.
Heat Shrink Tubing Shrink Ratio
2:1 Shrink Ratio
Shipping Weight
1.32 lb.
Heat Shrink Tubing Style
Heavy Duty HST
Shrink Tubing Type
Heat Shrink Tubing
Inside Diameter Expanded Pre-Shrink
1.1 in.
Temperature Range
-45 deg. C to 125 deg. C
Item
Heat Shrink Tubing
Trade Name
SEAL-A-SPLICE
Length
6 in.
Tube Material
Polyolefin
Mfr. Part Number
717934
Use Shrink Tubing With Wire Size
2 to 4/0 AWG
Pack Quantity
25
Wall Thickness
0.035 in.

Product Description

  • Offers greater protection under the most adverse environmental conditions.
  • Provides additional strain relief, abrasion protection, optimum waterproofing, and environmentalprotection in submersible, above ground, or direct buried applications.
  • Seals can be made over lead, steel, aluminum, and copper.
  • Eliminates grease, tape, and epoxy methods.
  • Thick wall insulation protects through 2,000 volts.
  • Rated for continuous operating temperature up to 90°C.
  • Heat source of 250° F. to 275° F. needed to shrink tubing.
  • Color: Black MEASUREMENTS:
  • Lengt h: 6"
  • Approximate Fraction Size: 1"
  • Internal Diameter:
  • Min inum Expanded: 1.100"
  • Maximum Recovered: 0.375"
  • Wall Thickness:
  • Expanded: 0.040"
  • Recovered: 0.120"
  • Recommended Cable Size: 2 thru 4/0 AWG
  • NOTE: UL approved.

Compliance & Restrictions

California Proposition 65 Icon
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
0717934
Seal-A-Splice III 1X6 Blk 25PK
  Name Item Description
Phillips Phillips 6-206
UNSPSC CODES UNSPSC CODES 39121721
VMRS (ATA) CODES VMRS (ATA) CODES 053-007-002 SEAL-A-SPLIC III 2ga-4/0
