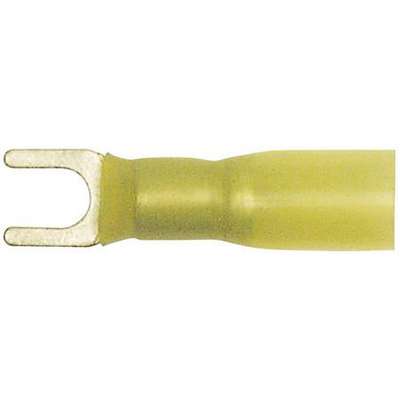

Imperial Seal-A-Crimp Sealed Heat Shrink Spade, Yellow, 12-10 AWG Stud Size 6"

Hover over image to magnify
Sealed Yel #6 Spade
Sealed Yel #6 Spade
Imperial Seal-A-Crimp Sealed Heat Shrink Spade, Yellow, 12-10 AWG Stud Size 6" Video

#71175 | Pkg Qty: 50

Item Number 71175
Scanner Description Sealed Yel #6 Spade
Inventory Status In Stock
Weight 0.5 lb
Brand IMPERIAL
Trade Name SEAL-A-CRIMP
Catalog E2

Technical Specifications

Brand
IMPERIAL
Insulation Type
Heat Shrink
Color Family
Yellow
Item
Heat Shrink Terminal
Connection Material
Copper
Pack Quantity
50
Connection Type
Crimp
Temperature Range (Deg. C)
-55 to +125 deg. C
Connector Style
Sealed
Temperature Range (Deg. F)
-67 to +257 deg. F
Heat Shrink Terminal Connector
Spade
Trade Name
SEAL-A-CRIMP
Heat Shrink Terminal Stud Size
#6
Wire Gauge Range
12-10 AWG

Product Description

Seal-A-Crimp® Spade Terminal
  • A Totally Environmental Sealed Terminal Connection.
  • Simply Crimp And Heat. A Special Heat Shrink Tubing Is Utilized With An Adhesive Inner Liner That Melts And Adheres As The Tubing Shrinks, Providing A Complete Environmental Seal.
  • This Dual-Wall, Heat Seal Terminal Is Specifically Suited For Those Applications Which Require "Environment Proof" Connections.
  • The Construction Of This Unique Terminal Begins With A Funnel Entry Terminal Made Of Pure Electrolytic (Ept) Copper And Is Plated To Resist Corrosion.
  • Operating Temperature Range: -55° C. To 125° C.
  • Stud Size: 6
  • Wire Gauge: 12-10
  • Color: Yellow

Compliance & Restrictions

Lot Tracked Item Lot tracked item

Documents

Item Barcode
0711750
  Name Item Description
UNSPSC CODES UNSPSC CODES 39121432 SEAL-A-CRIMP YEL #6 SPADE
VMRS (ATA) CODES VMRS (ATA) CODES 053-007-002 SEAL-A-CRIMP YEL #6 SPADE
