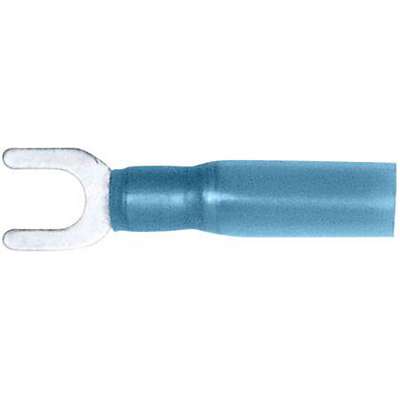

Imperial® Seal-A-Crimp® Sealed Heat Shrink Spade, Blue, 16-14 AWG Stud Size 8"
#71171 | Pkg Qty: 50
Technical Specifications
Brand
IMPERIAL
Item
Heat Shrink Terminal
Color Family
Blue
Pack Quantity
50
Connection Material
Copper
Stud Size - Heat Shrink Terminals
#8
Connection Type
Crimp
Temperature Range (Deg C)
-55 to +125 deg. C
Connector Style
Sealed
Temperature Range (Deg F)
-67 to +257 deg. F
Heat Shrink Terminal Connector
Spade
Trade Name
SEAL-A-CRIMP
Insulation Type
Heat Shrink
Wire Gauge Range
16-14 AWG
Product Description
Seal-A-Crimp® Spade Terminal
- A Totally Environmental Sealed Terminal Connection.
- Simply Crimp And Heat. A Special Heat Shrink Tubing Is Utilized With An Adhesive Inner Liner That Melts And Adheres As The Tubing Shrinks, Providing A Complete Environmental Seal.
- This Dual-Wall, Heat Seal Terminal Is Specifically Suited For Those Applications Which Require "Environment Proof" Connections.
- The Construction Of This Unique Terminal Begins With A Funnel Entry Terminal Made Of Pure Electrolytic (Ept) Copper And Is Plated To Resist Corrosion.
- Operating Temperature Range: -55° C. To 125° C.
- Stud Size: 8
- Wire Gauge: 16-14
- Color: Blue
Documents
Item Barcode
| Name | Item | Description | |
|---|---|---|---|
|
Phillips | 1-1941 | SEAL-A-CRIMPBLU #8 SPADE |
|
UNSPSC CODES | 39121432 | SEAL-A-CRIMP BLU #8 SPADE |
|
VMRS (ATA) CODES | 053-007-002 | SEAL-A-CRIMP BLU #8 SPADE |
