METRI-PACK

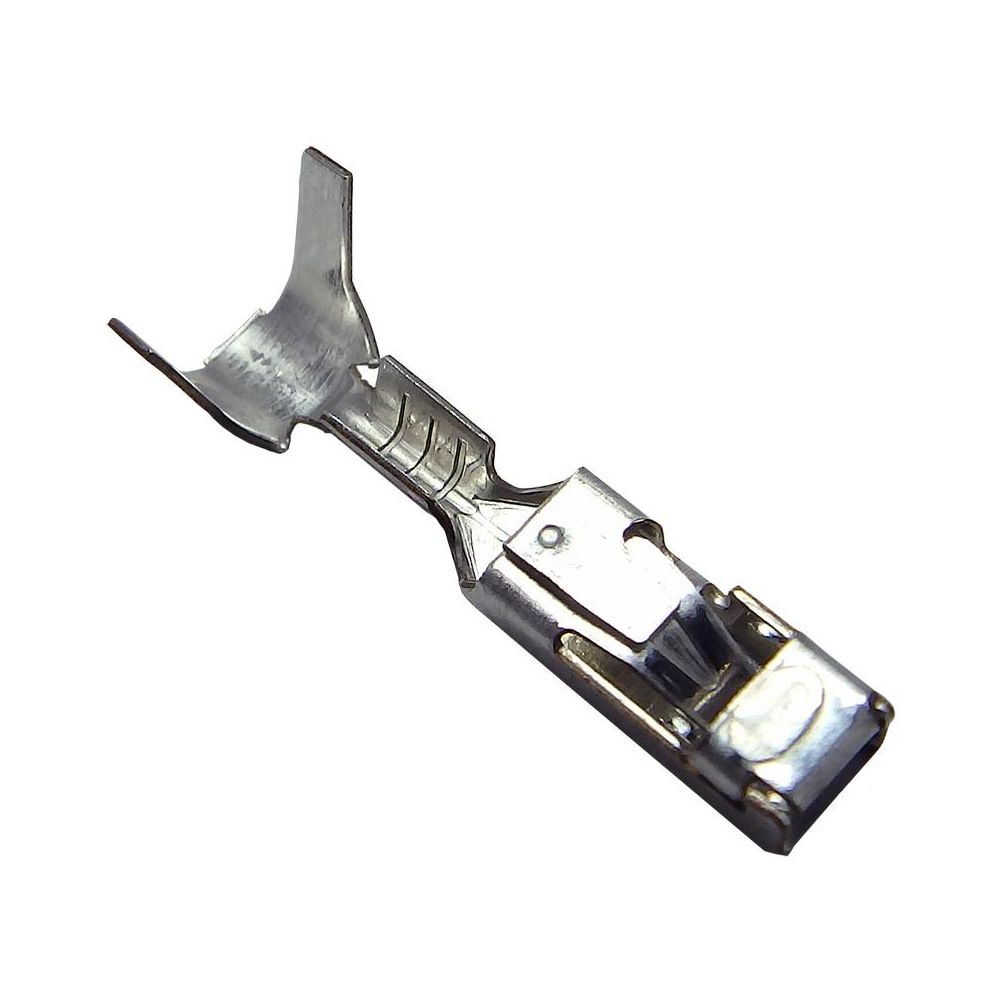

20-22 Gauge Metri-Pack Female Terminal Gt280 Serie
Hover over image to magnify
Technical Specifications
Brand
METRI-PACK
Shipping Weight
0.3 lb.
Mfr. Part Number
15304718
Temperature Range (Deg. C)
-40 to +125 deg. C
Package Quantity
25
Terminal Style
Female Terminal
Series
280
Wire Gauge
22-20 AWG
Product Description
Metri-Pack Terminal Gt280 Series
- Metri-Pack 280 Delphi Connectors. These In-Line Delphi Connectors Feature High Current And Current Density In A Small, Compact Design. Because Of Their Excellent Resistance To Temperature, Chemicals, And Abrasions, 280 Series Delphi Connectors May Be Used In Under-Hood Automotive Applications As Well As Most Marine, Off-Road, And Agricultural Applications. Rated For 16 Volts And 30 Amps, Delphi Connectors Must Be Used In Conjunction With A Sealed Splice Pack System.
- Female Terminal.
- Uses Triple-Rib Peripherial Silicone Rubber Seals, Making Them Ideally Suited For Critical, Low-Energy Electronic Applications That Require Protection From Environental Hazards.
- Low Energy, Low Voltage.
- Excellent Resistance To Temperature, Chemicals, And Abrasion.
- Temperature Range: -40 C. To 125 C.
- 30 Amps Continuous Maximum Current Rating.
- Cross Reference: 15304718
- Use With Orange Cable Seal, Part No. 74068 For 20-22 Gauge Wire.
- To Disassemble, Use Metri-Pack Release Tool, Part No. 74048 .
Item Barcode
Metri-Pack Female Terminal
| Name | Item | Description | |
|---|---|---|---|
 | UNSPSC CODES | 39121700 | METRI-PACK FEMALE TERM |
 | VMRS (ATA) CODES | 052-007-002 | METRI-PACK FEMALE TERM |
