Home All Products Cutting & Holemaking Tools Machinery Drill Presses, Magnetic Drills and Mill Drills Shop Drill Presses Floor Drill Presses SKU: 935000-2
Share
Print
JET

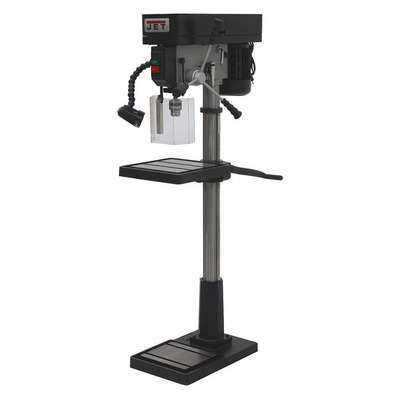

Jet Floor Drill Press: Belt, Fixed, 350 RPM û 2, 800 RPM, 115/230 VAC /Single-Phase, 16-7/8" Swing

Hover over image to magnify
Floor Drill Press,Belt,16-7/8
Floor Drill Press,Belt,16-7/8

#935000-2 | Pkg Qty: 1

$2,322.67 pkg | $2,322.67 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amps AC
8.9
Overall Depth
27-1/2 in.
Application
Drilling
Overall Height
63 in.
Brand
JET
Overall Width
16-3/4 in.
Chuck Size
5/8 in.
Package Quantity
1
Corded/Cordless
Corded
Phase
Single-Phase
Drive Type
Belt
Shipping Weight
261 lb.
Horsepower
1 HP
Speed Control
Fixed
Hz
60
Swing
16-7/8 in.
Item
Floor Drill Press
Voltage
115/230
Mfr. Part Number
IDP-17
General
Chuck Capacity
5/8 in
Minimum Spindle Speed
350 RPM
Chuck Style
Keyed
Nominal Voltage
115/230V AC
Column Diameter
3 1/8 in
Quill Diameter
2 1/16 in
Drill Press Application
Drilling
Speed Adjustment
Step Pulley
Drill Press Type
Floor Stand
Speed Range
350 to 2,800 RPM
Drill Spindle Travel
3 in - 4 in
Spindle Speed Range
350 RPM - 2,800 RPM
Drilling Capacity in Cast Iron
3/4 in
Spindle Travel
3 5/16 in
Drilling Capacity in Stainless Steel
5/8 in
Spindle-to-Column Distance
8 3/8 in
Drilling Capacity in Steel
5/8 in
Table Length
14 in
Guard Included
Yes
Table Slot
Yes
Includes
Arbor, Chuck with Key, Drift Key, Hex Wrenches, Wrench
Table Slot Width
1/2 in
Maximum Overall Height
63 in
Table Tilt
45 Degrees
Maximum Spindle Speed
2,800 RPM
Table Width
14 in
Maximum Spindle-to-Base Height
50 in
Tilting Angle
45 Degrees
Maximum Spindle-to-Table Height
30 1/2 in

Product Description

General Purpose Drill Presses, Floor Drill Press, Drive Type Belt, Swing 16 7/8 in, Spindle Taper 2MT, Motor HP 1 hp, Capacity Steel 5/8 in, Capacity Cast Iron 3/4 in, Includes Arbor, Chuck with Key, Drift Key, Hex Wrenches, Wrench, Power Down Feed Included No, Voltage 115/230, Amps AC 8.9, Number of Speeds 12, Chuck Size 5/8 in, Spindle Speed 350 to 2800 rpm, Spindle Travel 3 5/16 in, Base Size 21-3/4 in x 13-3/4 in x 2-3/16 in, Table Work Surface 14 in x 14 in, Hz 60, Phase 1

Item Barcode
9350002
Floor Drill Press,Belt,16-7/8
 NameItemDescription
Grainger DropshipGrainger Dropship49LX95
UNSPSC CODESUNSPSC CODES27112703
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Floor Drill Press,Belt,
