DAYTON

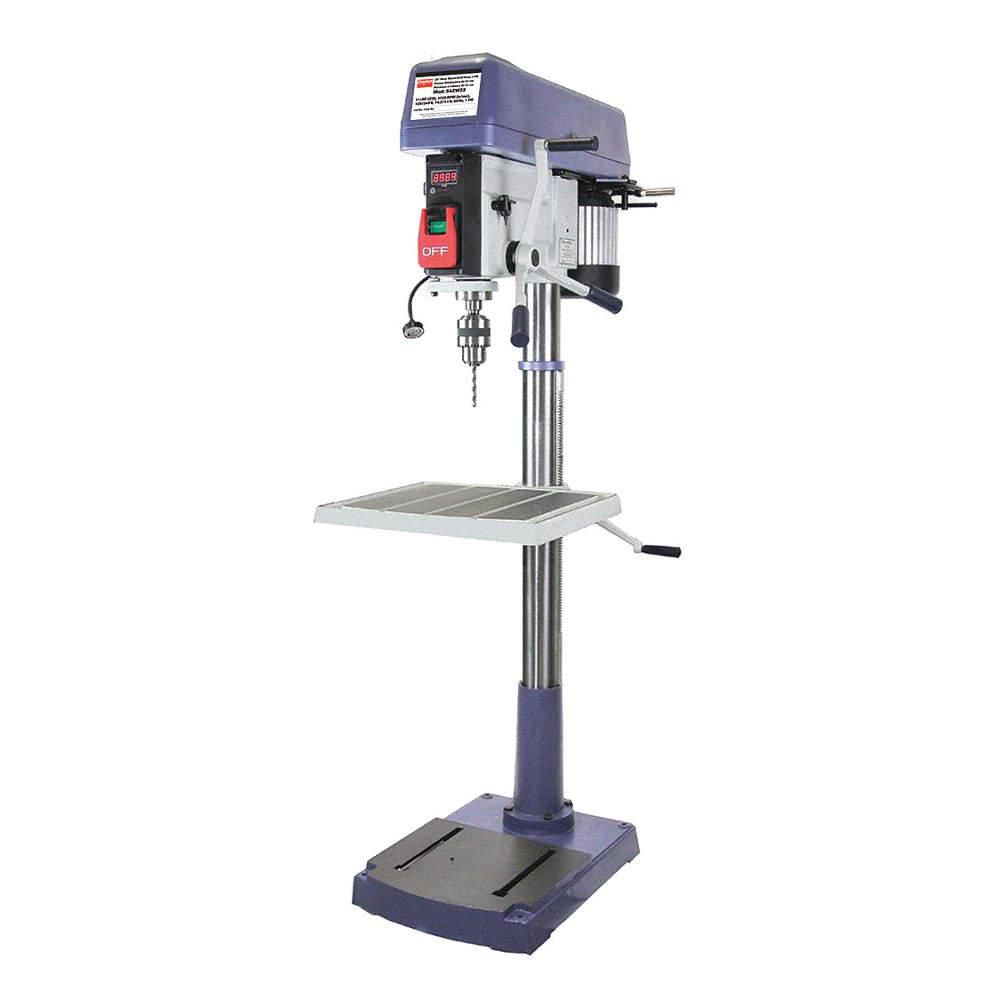

Dayton Floor Drill Press: Belt, Fixed, 120 RPM – 3, 605 RPM, 115/230 VAC /Single-Phase, 20" Swing

Hover over image to magnify
Floor Drill Press,Belt Drive,1-
Floor Drill Press,Belt Drive,1-

#934129 | Pkg Qty: 1

$2,307.69 pkg | $2,307.69 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Amps AC
14.2/7.1
Overall Depth
34-1/2 in.
Application
Production Drill Press
Overall Height
70 in.
Brand
DAYTON
Overall Width
20-1/2 in.
Chuck Size
5/8 in.
Package Quantity
1
Corded/Cordless
Corded
Phase
Single-Phase
Drive Type
Belt
Shipping Weight
289 lb.
Horsepower
1-1/2 HP
Speed Control
Fixed
Hz
60
Swing
20 in.
Item
Floor Drill Press
Voltage
120/240
Mfr. Part Number
54ZW32
General
Chuck Capacity
5/8 in
Minimum Spindle Speed
120 RPM
Chuck Style
Keyed
Nominal Voltage
115/230V AC
Column Diameter
3 3/8 in
Quill Diameter
2 7/16 in
Current
14.2/7.1 A
Speed Adjustment
Step Pulley
Drill Press Application
Boring, Countersinking, Drilling, Reaming
Speed Range
120 to 3,605 RPM
Drill Press Type
Floor Stand
Spindle Speed Range
120 RPM - 3,605 RPM
Drill Spindle Travel
6 in - 7 in
Spindle Travel
6 in
Drilling Capacity in Steel
3/4 in
Spindle-to-Column Distance
10 in
Includes
Chuck Key Holder, Chuck with Key, Depth Stop Gauge, LED Readout for Spindle Speeds, V-Belts
Table Length
19 1/4 in
Maximum Overall Height
70 in
Table Slot
Yes
Maximum Spindle Speed
3,605 RPM
Table Tilt
45 Degrees
Maximum Spindle-to-Base Height
43 in
Table Width
18 3/8 in
Maximum Spindle-to-Table Height
26 in
Tilting Angle
45 Degrees

Product Description

Floor Drill Press, Primary Material Application Metal, Wood, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Boring, Countersinking, Drilling, Reaming, Speed Control Fixed, Speed Adjustment Step Pulley, Swing 20 in, Spindle-to-Column Distance 10 in, Horsepower 1 1/2 hp, Voltage 120/240V AC, Spindle Taper 3MT, Number of Speeds 16, Chuck Size 5/8 in, Chuck Style Keyed, Guard Included No, Coolant System No, Quill Diameter 2 7/16 in
