JET

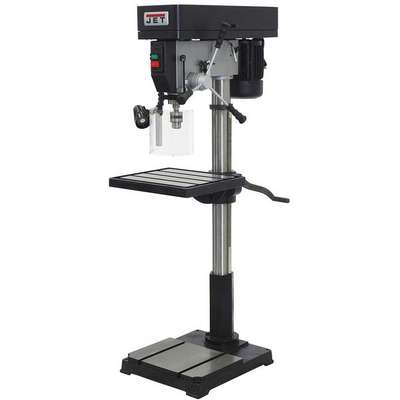

Jet 1/2 Motor HP Floor Drill Press, Belt Drive Type, 21-7/8" Swing, 115/230 Voltage

Hover over image to magnify
Floor Drill Press,Belt,21-7/8
Floor Drill Press,Belt,21-7/8

#924229 | Pkg Qty: 1

$2,870.46 pkg | $2,870.46 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amps AC
7.6
Mfr. Part Number
IDP-22
Application
Drilling
Overall Depth
35 in.
Brand
JET
Package Quantity
1
Corded/Cordless
Corded
Phase
Single-Phase
Drive Type
Belt
Shipping Weight
358 lb.
Horsepower
1-1/2 HP
Speed Control
Fixed
Hz
60
Swing
21-7/8 in.
Item
Floor Drill Press
Voltage
115/230
General
Chuck Capacity
5/8 in
Minimum Spindle Speed
175 RPM
Chuck Style
Keyed
Nominal Voltage
115/230V AC
Column Diameter
3 5/8 in
Quill Diameter
2 5/8 in
Current
7.6 A
Speed Adjustment
Step Pulley
Drill Press Application
Drilling
Speed Range
275 to 3,050 RPM
Drill Press Type
Floor Stand
Spindle Speed Range
175 RPM - 3,050 RPM
Drill Spindle Travel
4 in - 5 in
Spindle Travel
4 13/16 in
Drilling Capacity in Cast Iron
1 1/4 in
Spindle-to-Column Distance
10 7/8 in
Drilling Capacity in Stainless Steel
1 in
Table Length
18 5/8 in
Drilling Capacity in Steel
1 in
Table Load Capacity
176 lb
Guard Included
Yes
Table Slot
Yes
Includes
Arbor, Chuck with Key, Drift Key, Hex Wrenches, Wrench
Table Slot Width
5/8 in
Maximum Overall Height
67 in
Table Tilt
45 Degrees
Maximum Spindle Speed
3,050 RPM
Table Width
16 1/8 in
Maximum Spindle-to-Base Height
48 1/2 in
Tilting Angle
45 Degrees
Maximum Spindle-to-Table Height
28 in

Product Description

General Purpose Drill Presses, Floor Drill Press, Drive Type Belt, Swing 21 7/8 in, Spindle Taper 3MT, Motor HP 1 1/2 hp, Capacity Steel 1 in, Capacity Cast Iron 1 1/4 in, Includes Arbor, Chuck with Key, Drift Key, Hex Wrenches, Wrench, Power Down Feed Included No, Voltage 115/230, Amps AC 7.6, Number of Speeds 12, Chuck Size 5/8 in, Spindle Speed 275 to 3050 rpm, Spindle Travel 4 13/16 in, Base Size 22-5/8 in x 19-7/16 in x 3-3/8 in, Table Work Surface 18-5/8 in x 16-1/8 in, Hz 60, Phase 1
