BUSSMANN

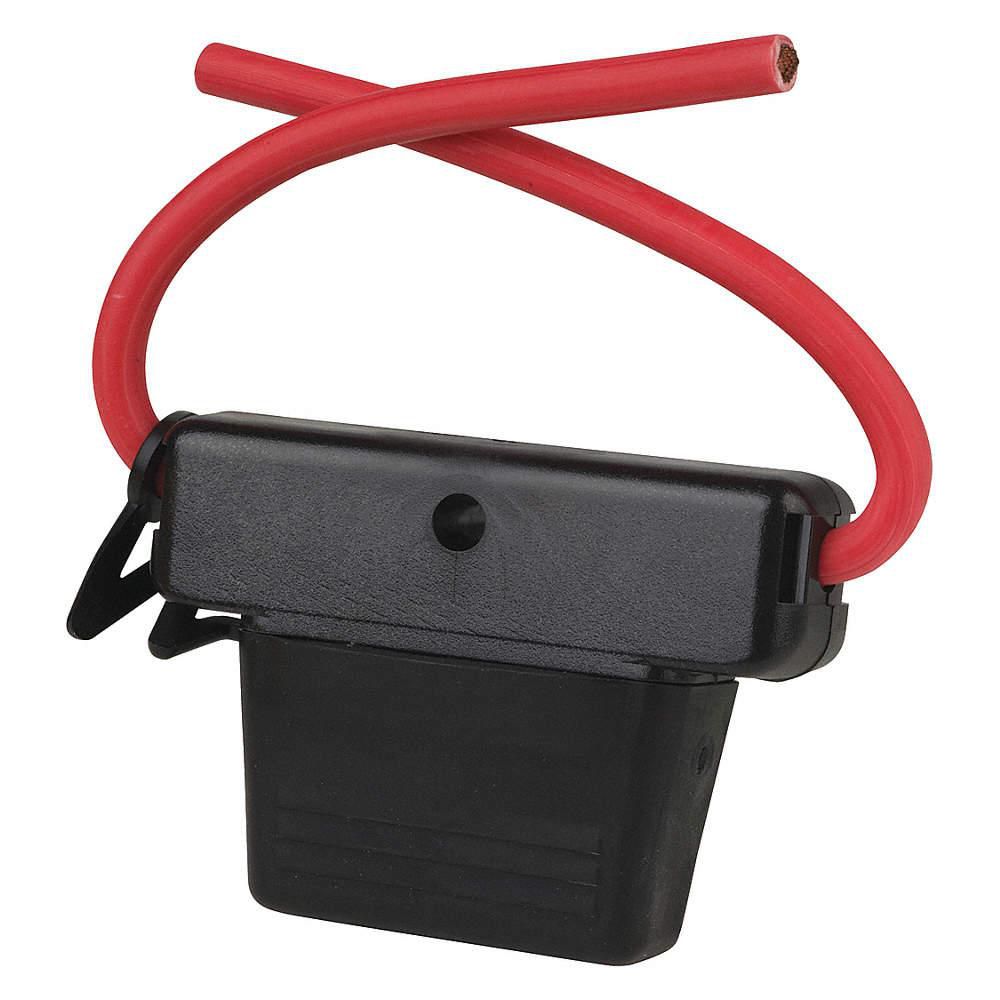

Bussmann In-Line Fuse Holder: 1 Poles, 20 to 60 A, 32V DC, Wire Leads, Nonindicating, Covered, 299, AF3, MAX

Hover over image to magnify
Fuse Holder,Series Hhx,32V,
Fuse Holder,Series Hhx,32V,

#916401-9 | Pkg Qty: 1

$40.90 pkg | $40.90 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
AC Voltage Rating
Not Rated
Fuse Length
3.33 in.
Amp Range of Fuse Block or Holder
20 to 60A
Fuse Size Length
2003-03-01
Amperage Range
0-60 A
Fuse Type
Automotive
Amps AC
48DC
Fuse UL Class
Not Class Rated
Blown Fuse Indicator
No
Height
1.37 in.
Body Height
1.37 in.
Indicating / Nonindicating
Nonindicating
Body Length
7.4 in.
Item
Fuse Holder
Body Material
Polycarbonate
Length
7.4 in.
Body Width
3.35 in.
Maximum Amps
60
Brand
BUSSMANN
Maximum Voltage
32 V
Color Family
Black
Mfr. Part Number
HHX
Connector Type
Lead Wire
Mounting Style
Inline
DC Voltage Rating
32 VDC
Number of Poles
1
Depth
1.37 in.
Pack Quantity
1
For Fuse Series
MAXI
Series
Hhx
For Fuse Size
1-23/64 in. L x 1-7/32 in. W x 23/64 in. D
Shipping Weight
.3 lb.
Fuse Block Design
Not Applicable
Voltage Rating
32 VDC
Fuse Block/Fuse Holder Type
Fuse Holder
Width
3.35 in.
Fuse Block/Holder AC Voltage Rating
Not Rated
Wire Gauge
6 AWG
Fuse Block/Holder DC Voltage Rating
32 VDC
Wire Length
5 in.
Fuse Dimensions
1/4 in.L x 1-1/4 in.H x 1/4 in.W
Wire Size
6 AWG
General
Amp Range
20 to 60 A
Fuse Block or Fuse Holder Type
Fuse Holder
Compatible Fuse Series
299, AF3, MAX
Fuse Block or Holder DC Voltage Rating
32VDC
Fits Fuse Type
Automotive
Standards
RoHS
For Use With
MAXI-Fuses
Visual Indication
Nonindicating
Fuse Block Style
Nonrejection

Product Description

These in-line fuse holders are compatible with automotive blade fuses commonly used for overcurrent protection of vehicle wiring and electrical systems. The blade-style contacts of automotive blade fuses plug into these holders for a secure connection. They're typically used to hold fuses in cars, trucks, RVs, and DC-powered equipment.

In-line fuse holders are wire-mounted holders that connect anywhere along a circuit to protect specific lines. They allow these lines to be isolated in the event of a fault so that the rest of the wiring system won't be affected. They have a receptacle that encloses a fuse and pigtail wires or terminals that extend from each end of the receptacle for connecting to a circuit. These fuse holders are commonly used on automotive wiring and other applications where space is limited or fuse box would be impractical.
