PARKER

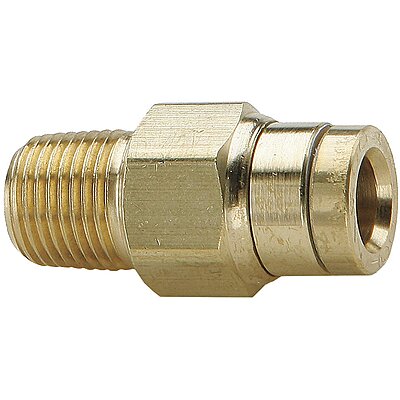

Male Connector: Brass, Push-to-Connect x MNPT, For 3/8 in Tube OD, 1/8 in Pipe Size
Hover over image to magnify
#914576-2 | Pkg Qty: 1
$10.43 pkg | $10.43 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
PARKER
Material
Brass
Brass DOT Push-to-Connect Fittings Type
Connectors
Mfr. Part Number
68PTC-6-2
Connection
Tube x MNPT
Package Quantity
1
Connection Type
Male
Pipe Thread
1/8 in.
DOT Approved
Yes
Shipping Weight
.1 lb.
Fitting Material
Brass
Temperature Range
-40 deg. F to 200 deg. F
Fitting Type
Push-To-Connect
Tube Outside Diameter
3/8 in.
Gasket Material
Buna N
Working Pressure
250 psi
Hex Size
3/4 in.
General
Application
Air
Overall Length
1 9/32 in
End Connection Type
Push-to-Connect, Threaded
Release Type
Button
Fitting Shape
Adapter
Resistance Properties
Impact-Resistant
Fitting Side A Connection Type
Push-to-Connect
Specific Fitting Shape
Straight Adapter
Fitting Side A Tube Outer Diameter
3/8 in
Standards
SAEJ2494, DOT FMVSS 571.106
Fitting Side B Connection Type
MNPT
System of Measurement
Imperial
Fitting Side B Pipe Size
1/8 in
Product Description
Brass Air Brake Connectors and Accessories
- Fittings are 1-pc. construction, field serviceable, and reusable. Quick-connect 1800 Series models provide a quick way to easily assemble nylon air brake assemblies. Suitable for use on all brake systems, except where temperatures exceed 200°F or where battery acid can drip on tubing. Not for fuel, water, or oil. Original style 1400 Series fittings are for brake and nylon tubing. For use on all brake systems, except where temperatures exceed 200°F. Compression 1300 Series models are for rigid copper air brake tubing and can be used on all air brake systems.
- Brass Air Brake Connectors and Accessories
- 1-pc. fittings are reusable and easily assembled, no tools required. Compression style fittings come standard with preapplied thread sealant. Both style fittings are for use iwith nylon air brake assemblies. Fittings meet DOT FMVSS 571-106 specifications. Compression style fittings also meet functional requirements of SAE J246 and SAE J1131.
