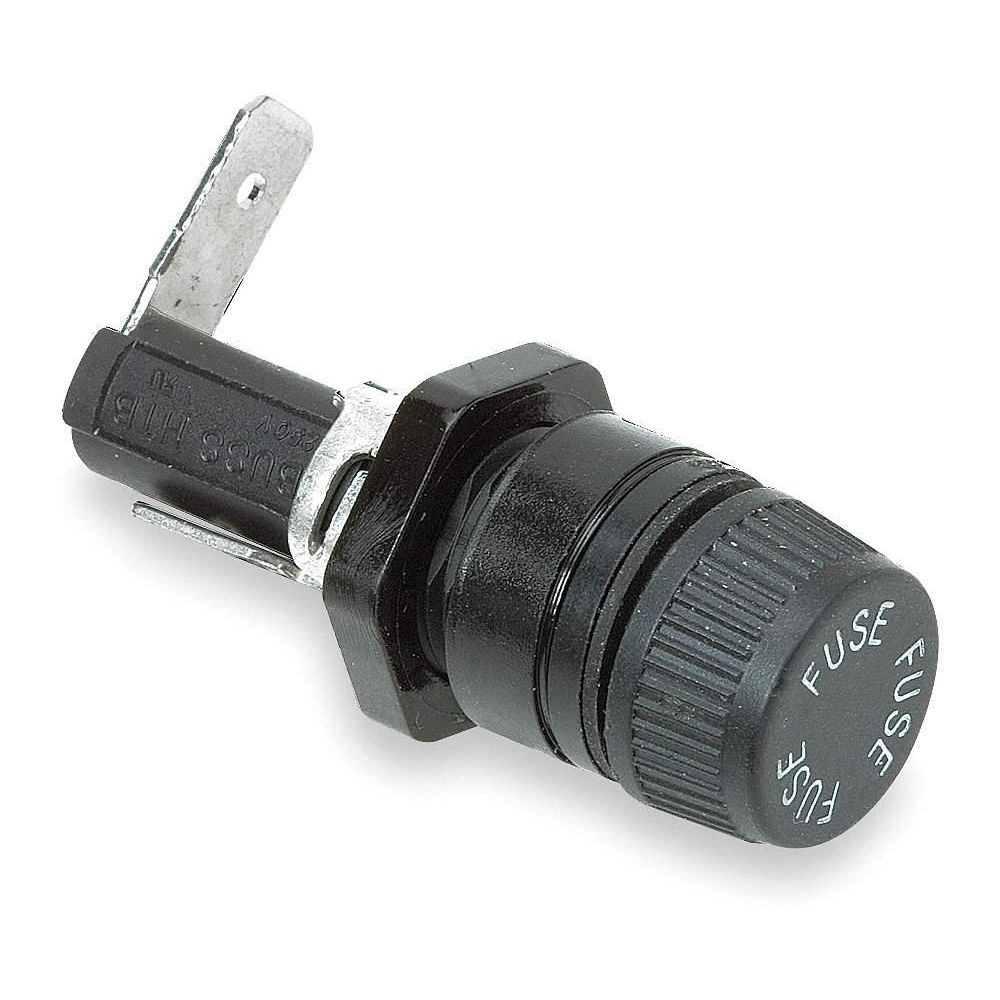

Bussmann 1-Pole Glass and Ceramic Fuse Holder, AC: 250VAC, DC: 125VDC, 1 to 20A, Series HTB

Hover over image to magnify
Fuse Holder, 20A/250V, 1/4"
Fuse Holder, 20A/250V, 1/4"

#911054-7 | Pkg Qty: 1

$12.29 pkg | $12.29 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
AC Voltage Rating
250 VAC
Fuse Size Diameter
2022-01-04
Amp Range of Fuse Block or Holder
1 to 20A
Fuse Size Length
2004-01-01
Amperage Range
1-20 A
Fuse Type
Glass and Ceramic
Amps AC
20
Fuse UL Class
Not Class Rated
Blown Fuse Indicator
No
Height
1-1/4 in.
Body Material
Thermoplastic
Indicating / Nonindicating
Nonindicating
Brand
BUSSMANN
Item
Fuse Holder
Connector Type
Slip-On
Length
1/4 in.
DC Voltage Rating
125 VDC
Maximum Amps
20
Diameter
1/4 in.
Maximum Voltage
250 V
For Fuse Series
ABC, AGC, AGX, MDA, MDL, MDM, MDQ, TFF, TFL, TGH
Mfr. Part Number
HTB-48I-R
For Fuse Size
1-1/4 in. L x 1/4 in. dia
Mounting Hole
1/2 in. x 29/64 in. dia
Fuse Block Design
Not Applicable
Mounting Style
Panel
Fuse Block/Fuse Holder Type
Fuse Holder
Number of Poles
1
Fuse Block/Holder AC Voltage Rating
250 VAC
Package Quantity
1
Fuse Block/Holder DC Voltage Rating
125 VDC
Panel Thickness
1/8 in.
Fuse Diameter
0.25 in.
Series
Htb
Fuse Dimensions
1/4 in.L x 1-1/4 in.H x 1/4 in.W
Shipping Weight
.03 lb.
Fuse Holder Code
G
Voltage Rating
250 VAC/125 VDC
Fuse Length
1.25 in.
Width
1/4 in.
General
Amp Range
0 to 20 A
Fuse Block or Holder AC Voltage Rating
250VAC
Compatible Fuse Series
311, 312, 313, 314, 315, 322, 326, 3AG, ABC, ACG, GAB, GBB, GDL, GDV, GGC, GSA, MDA, MDL, MDQ, MDV, MDX, MMB
Fuse Block or Holder DC Voltage Rating
125VDC
Fits Fuse Type
Glass and Ceramic
Fuse Cap Style
Screw Knob
Fuse Block Style
Nonrejection
Visual Indication
Nonindicating
Fuse Block or Fuse Holder Type
Fuse Holder

Product Description

These panel-mount fuse holders are compatible with either 1-1/4" x 1/4" or 20mm x 5mm glass and ceramic fuses for overcurrent protection in electronics equipment, appliances, and lighting circuits. They have a removable cap for installing and removing fuses. They're used with glass fuses for protecting low-current circuits or ceramic fuses for protecting high-current circuits.

Panel-mount fuse holders have a cylindrical body that houses fuses and fits into electrical control panels and enclosures. They have a top opening to accept the fuse and a terminal end that connects to a circuit and mounts into a panel. These holders keep fuses enclosed to prevent accidental contact with live clips.
