PARKER

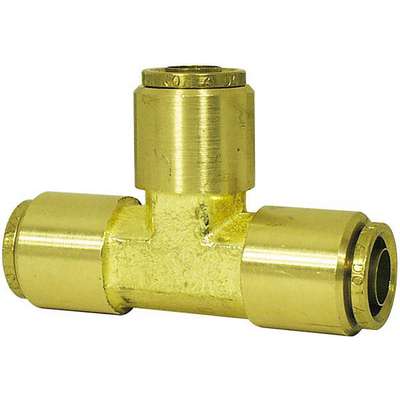

Brass, Tee Connector, Air Brake Push-to-Connect, 1/4 in. x 1/4 in. X 1/4 in.

Hover over image to magnify
Parker A/B Push Uni Tee 1/4
Parker A/B Push Uni Tee 1/4
Brass, Tee Connector, Air Brake Push-to-Connect, 1/4 in. x 1/4 in. X 1/4 in. Video

#791210 | Pkg Qty: 10

Not currently available. Call your service advisor for availability.

Shipping to 60045
|

Technical Specifications

Brand
PARKER
Hex Size
3/8
Brass DOT Push-to-Connect Fittings Type
Tees
Material
Brass
DOT Approved
Yes
Meets Standards
D.O.T. FMVSS 571.106 and SAE J1131
Fitting Connection (A) Style
Push to Connect
Mfr. Part Number
164PTC-4
Fitting Connection (A) Tube Size
1/4
Package Quantity
10
Fitting Connection (B) Style
Push to Connect
Plating
None
Fitting Connection (B) Tube Size
1/4 in.
Pressure Connection Cross
D1164-04-04-04
Fitting Connection (C) Style
Push to Connect
Shape
Union Tee
Fitting Connection (C) Tube Size
1/4 in.
Shipping Weight
0.86 lb.
Fitting Material
Brass
System of Measurement
Fractional
Fitting Style
Tee
Tube Outside Diameter
1/4 in.
Fitting Type
Push-To-Connect
Vibration Resistance
Good
Gasket Material
Ethylene Propylene
Weatherhead Cross
1864-4
Grade
CA360
Working Pressure
150

Product Description

  • Typical Applications:
  • Parker
  • Air brakes, instrumentation, air controls, air bags, and air seats.
  • Exceeds DOT pressure requirements for air brake systems.
  • For use with SAE J844 type A or B air brake tubing.
  • Pre-Applied PTFE Based Pipe Sealant On All Male Pipe Threads.
  • Quick Disconnect - Simply push tubing In, no tools or loose parts to handle in tight places.
  • Pipe threads are the most common fitting style used in the United States and Canada.
  • Crosses References: Weatherhead 1864x4, Parker 164PTC-4, Parker 164PMT-4, Pressure Connections D1164-04-04-04, Tramec Sloan S264PMT-4, Grainger 11K693, Alkon AQ64-DOT-4

Compliance & Restrictions

California Proposition 65 Icon
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Item Barcode
7912100
Parker A/B Push Uni Tee 1/4
 NameItemDescription
WEATHERHEADWEATHERHEAD1864-4A/B UN TEE 1/4 PUSH IN
UNSPSC CODESUNSPSC CODES27131600Air fittings and connectors
VMRS (ATA) CODESVMRS (ATA) CODES053-008-004A/B UN TEE 1/4
