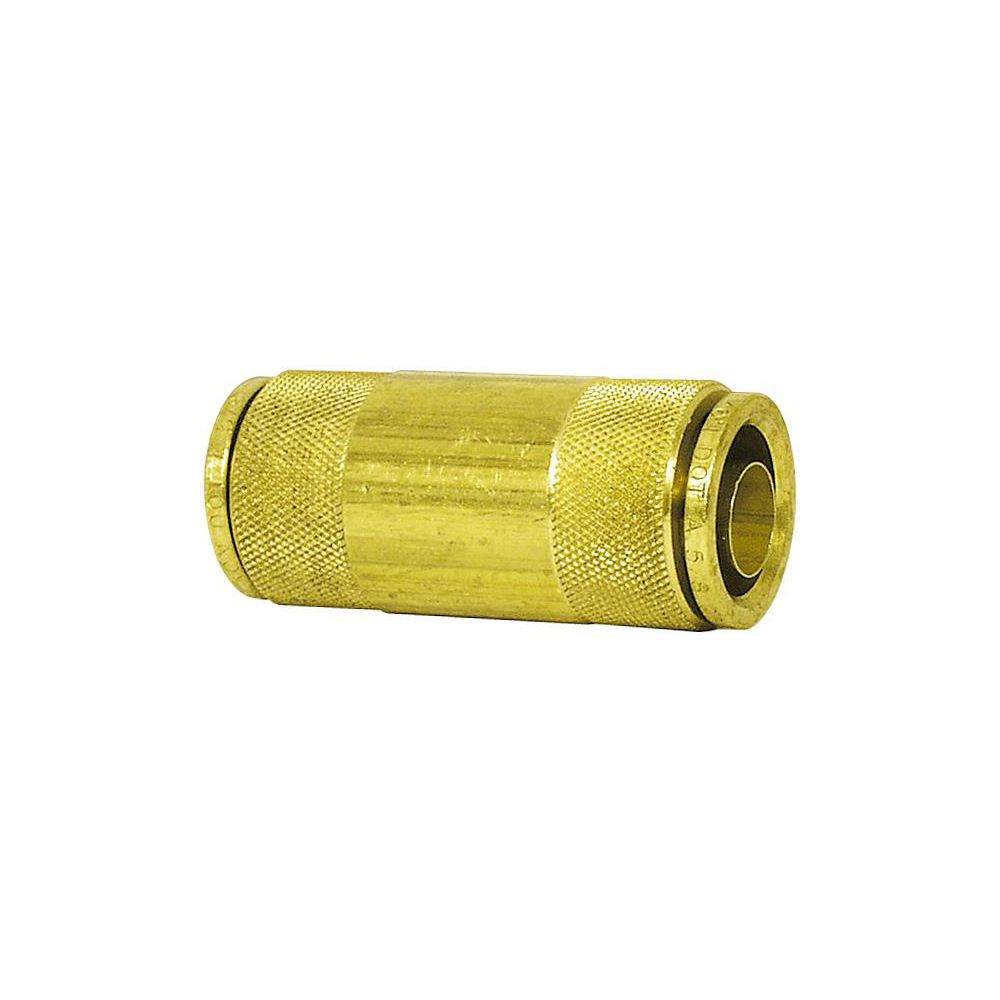

APPROVED SUPPLIERDOT Approved Air Brake Fitting Union, Push-To-Connect Fitting, Brass, 3/8 in. Tube OD
Hover over image to magnify
Technical Specifications
Brand
APPROVED SUPPLIER
Mfr. Part Number
91201
Brass DOT Push-to-Connect Fittings Type
Unions
Package Quantity
5
DOT Approved
Yes
Shape
Union
Fitting Material
Brass
Shipping Weight
0.33 lb.
Fitting Type
Push-To-Connect
System of Measurement
Fractional
Gasket Material
Ethylene Propylene
Tube Outside Diameter
3/8 in.
Grade
CA360
Vibration Resistance
Moderate
Material
Brass
Working Pressure
Up to 150 psi
Meets Standards
D.O.T. FMVSS 571.106 and SAE J1131
Product Description
Brass Push In Air Brake Union Fitting
- Quick Disconnect - Simply Push Tubing In, No Tools Or Loose Parts To Handle In Tight Places.
- Full Flow Design, Provides Up To 60% More Flow Area Than Conventional Fittings With Internal Tube Supports.
- Brass Construction. Elbows And Tees Are Forged Brass.
- Swivel Elbow And Tees For Ease Of Orientation.
- Pre-Applied PTFE Based Pipe Sealant On All Male Pipe Threads.
- Dot Approved.
- Typical Applications: Windows, Door Locks, Mirrors, Wipers, Air Operated Seats, Operating Gauges, Air Horns, Heater Controls, Gear Shifts, Fifth Wheels, And Air Brake Connections.
- For Use With Sae J844 Type A And B.
- Working Pressure: 250 Psi
- Temperature Range: -20° F To 200° F
- Applicable Standards: Fmvss-106
- Tube Outside Diameter: 3/8
Frequently Bought Together
Currently Viewing
A/B Push Union 3/8
| #91201 | Pkg Qty: 5
| #200-1 | Pkg Qty: 1
Available Assortments View All
| Assembly | Disassembly |
 |  |
| Insert tube end into fitting, sliding I.D. of the tube over insert (friction is felt as tube slides past O-Ring). Continue to push tube in until it bottoms out. | Use thumb and forefinger to disconnect tube. Hold down the top of the insert against the fitting body and pull out the tubing with the other hand. No tools needed. |
Compliance & Restrictions
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Lot Tracked Item Details
Item Barcode
A/B Push Union 3/8
| Name | Item | Description | |
|---|---|---|---|
 | WEATHERHEAD | 1862X6 | A/B UNION 3/8 PUSH IN |
| WEATHERHEAD | D1162X6 | A/B UNION 3/8 PUSH IN |
 | Gates Rubber Company | G31400-0606 | A/B UNION 3/8 PUSH IN |
 | UNSPSC CODES | 27131600 | Air fittings and connectors |
 | VMRS (ATA) CODES | 053-008-004 | A/B UNION 3/8 |
