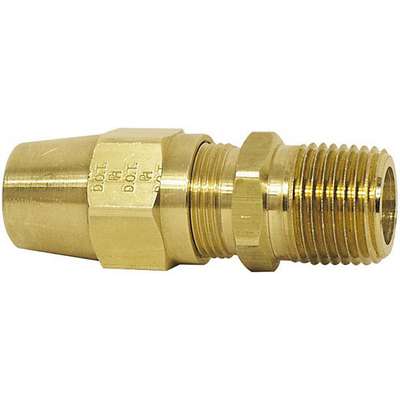

1368 X 8 Air Male Connector Brass Fitting
Hover over image to magnify
Technical Specifications
Key Specifications
Brand
APPROVED SUPPLIER
Package Quantity
10
Connection Type
Male
Pipe Thread
3/8 in.
Copper Tubing DOT Air Brake Fittings Type
Connectors
Shape
Connector
DOT Approved
Yes
Shipping Weight
1.75 lb.
Fitting Style
Air Brake Fitting
System of Measurement
Fractional
Grade
CA360
Thread Size
11/16"-20
Hex Size
11/16 in.
Tube Outside Diameter
1/2 in.
Item
Male Connector
Type
Male
Material
Brass
Vibration Resistance
Fair
Meets Standards
SAE and DOT
Working Pressure
Up to 150 psi
General
For Use With
Copper, J844 Nylon
Product Description
Male Connector Air Brake Fitting For Copper Tubing
- Use With Copper Tubing In Air Brake Systems. Can Also Be Used With Nylon Air Brake Tubing When Assembled With Tubing Inserts.
- Exceeds DOT Pressure Requirements For Air Brake Systems.
- Meets Sae, Dot, And Mil. Standards And Specifications.
- Fair Resistance To Vibration.
- Temperature Range: -65° F. To 250° F.
- To Assemble, Turn 1-3/4 Turns Past Hand Tight For 1/4 And 3/8 Sizes And 3-1/4 Turns For 1/2, 5/8, And 3/4 Sizes.
- Easy To Assemble, Tubing Does Not Have To Flared Or Bent.
- Exceeds Pressure Requirements Of Automotive Air Brake Systems.
- Applications: Air Brake Systems, Air Control, And Air Brake Lines.
- Tube Outside Diameter: 1/2
- Pipe Thread: 3/8
- Thread Size: 11/16-20
- Cross Reference: 1368 X 8
Available Assortments View All
Compliance & Restrictions
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Item Barcode
A/B Ml Conn 1/2X3/8
| Name | Item | Description | |
|---|---|---|---|
 | WEATHERHEAD | 1368X8 | A/B ML CONN 1368X8 |
| WEATHERHEAD | W17525 | A/B ML CONN 1368X8 |
 | UNSPSC CODES | 27131600 | Air fittings and connectors |
 | VMRS (ATA) CODES | 053-008-004 | A/B ML CONN 1368X8 |
