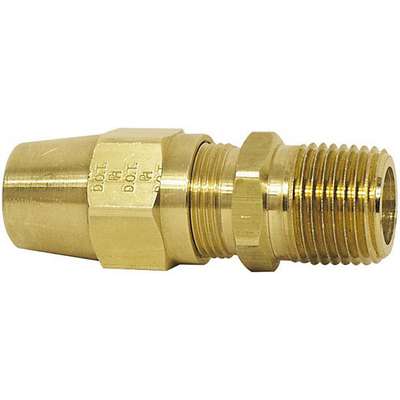

1368 X 6 Air Male Connector Brass Fitting
Technical Specifications
Brand
APPROVED SUPPLIER
Mfr. Part Number
90450
Connection Type
Male
Package Quantity
10
Copper Tubing DOT Air Brake Fittings Type
Connectors
Pipe Thread
1/4 in.
DOT Approved
Yes
Shape
Connector
Fitting Style
Air Brake Fitting
Shipping Weight
0.93 lb.
Grade
CA360
System of Measurement
Fractional
Hex Size
9/16 in.
Thread Size
17/32"-24
Item
Male Connector
Tube Outside Diameter
3/8 in.
Material
Brass
Vibration Resistance
Fair
Meets Standards
SAE and DOT
Working Pressure
Up to 150 psi
Product Description
Male Connector Air Brake Fitting For Copper Tubing
- Use With Copper Tubing In Air Brake Systems. Can Also Be Used With Nylon Air Brake Tubing When Assembled With Tubing Inserts.
- Exceeds DOT Pressure Requirements For Air Brake Systems.
- Meets Sae, Dot, And Mil. Standards And Specifications.
- Fair Resistance To Vibration.
- Temperature Range: -65° F. To 250° F.
- To Assemble, Turn 1-3/4 Turns Past Hand Tight For 1/4 And 3/8 Sizes And 3-1/4 Turns For 1/2, 5/8, And 3/4 Sizes.
- Easy To Assemble, Tubing Does Not Have To Flared Or Bent.
- Exceeds Pressure Requirements Of Automotive Air Brake Systems.
- Applications: Air Brake Systems, Air Control, And Air Brake Lines.
- Tube Outside Diameter: 3/8
- Pipe Thread: 1/4
- Thread Size: 17/32-24
- Cross Reference: 1368 X 6
Frequently Bought Together
Currently Viewing
A/B Ml Conn 3/8X1/4
| #90450 | Pkg Qty: 10
| #263-1 | Pkg Qty: 1
Available Assortments View All
Compliance & Restrictions
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Item Barcode
A/B Ml Conn 3/8X1/4
Name | Item | Description | |
---|---|---|---|
WEATHERHEAD | 1368X6 | A/B ML CONN 1368X6 | |
WEATHERHEAD | W05053 | A/B ML CONN 1368X6 | |
UNSPSC CODES | 27131600 | Air fittings and connectors | |
VMRS (ATA) CODES | 053-008-004 | A/B ML CONN 1368X6 |
