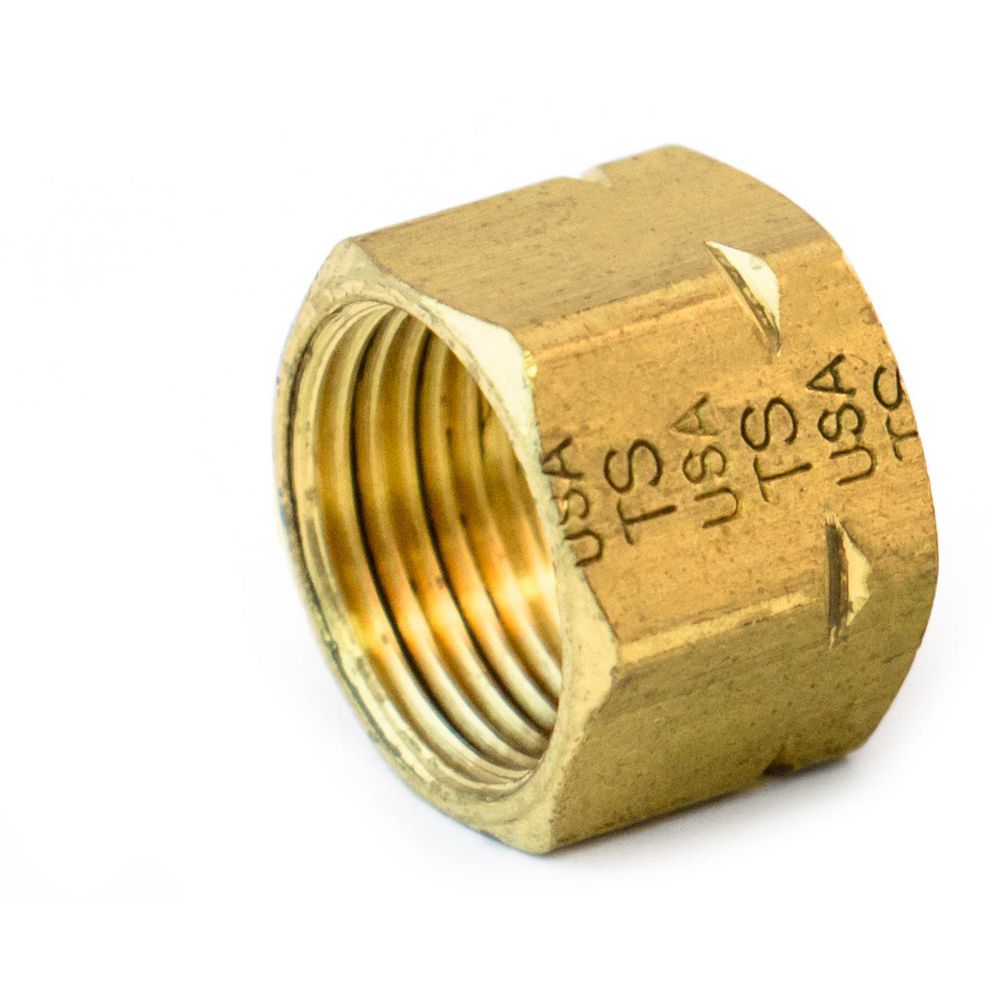

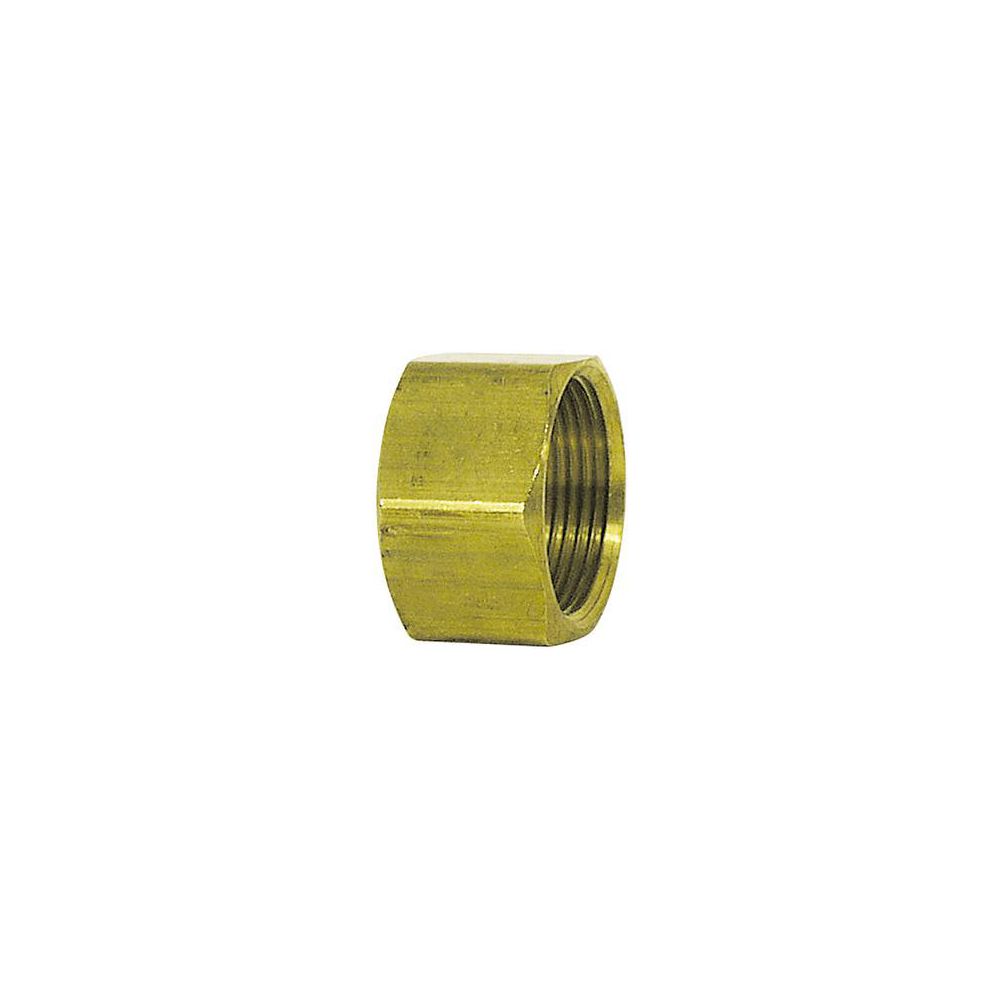

61 X 02 Compression Nut Brass Fitting
Hover over image to magnify
Technical Specifications
Brand
APPROVED SUPPLIER
Shipping Weight
0.08 lb.
DOT Approved
No
System of Measurement
Fractional
Fitting Style
Compression Tube NUt
Temperature Range (Deg. F)
-65 to +250 deg. F
Grade
CA360
Thread Size
5/16"-24
Item
Nut
Tube Outside Diameter
1/8 in.
Material
Brass
Vibration Resistance
Fair
Package Quantity
10
Working Pressure
Up to 2,000 psi depending on the tube size. For plastic tubing use the working pressure for type used.
Product Description
Compression Tube Nut Fitting
- Advantages:
- Low Cost.
- No Tube Flaring Necessary.
- Assembles Quickly And Easily.
- Conforms To Sae, Asa, And Asme Specifications.
- Applications: Copper Tubing, Aluminum Tubing, Brass Tubing, Plastic Tubing (With Insert).
- Not For Use With Steel Tubing.
- Cross Reference: 61 X 2
- Tube Outside Diameter: 1/8
- This Size Requires 1-1/4 Turns To Seal.
- Note: Compression Fittings Come As Complete Assemblies (Body, Nut, And Sleeve). Use New Sleeve And Nut When Reusing Fitting Body.
Frequently Bought Together
Currently Viewing
Compression Nut 1/8
| #90060 | Pkg Qty: 10
| #194-1 | Pkg Qty: 1
Available Assortments View All
Compliance & Restrictions
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Item Barcode
Compression Nut 1/8
| Name | Item | Description | |
|---|---|---|---|
 | WEATHERHEAD | 61X2 | COMP NUT 61X2 |
 | UNSPSC CODES | 40173301 | COMP NUT 61X2 |
 | VMRS (ATA) CODES | 053-008-004 | COMP NUT 61X2 |
