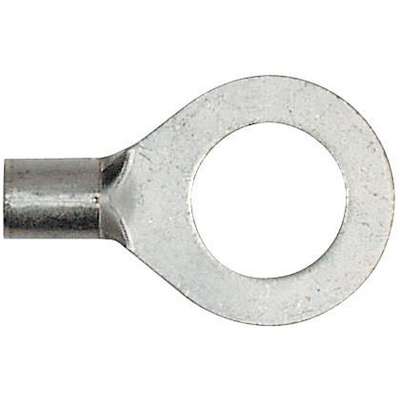

Non-Insulated Ring Terminal, 8 AWG, 5/16" Stud Size

Hover over image to magnify
Non-Ins 8GA 1/4-5/16 Ring
Non-Ins 8GA 1/4-5/16 Ring

#71830 | Pkg Qty: 20

In Stock

Shipping to 60045
|
Catalog: E11

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Mfr. Part Number
71830
Connection Material
Plated Copper
Non-Insulated Terminal Connector
Ring
Connection Type
Non-Insulated
Package Quantity
20
Continuous Duty Temperature
-40 deg. F to +220 deg. F
Shipping Weight
0.18 lb.
Intermittent Duty Temperature
Up to +300 deg. F
Stud/Tab Size
5/16 in.
Item
Terminal
Wire Gauge
8 AWG
Material of Construction
Tin-Plated Copper
General
Features
Beveled

Product Description

Non-Insulated Large Gauge Wire Ring Terminal
  • Funnel Barrel Is Molded To The I.D. Of The Terminal Barrel For Positive And Easy Wire Insertion Without Strand Hang-Ups.
  • Rigid Sleeve Supports The Wire Insulation.
  • Temperature Range: Continuous Duty From -40° F. To 220° F., Intermittent Duty To 300° F.
  • Designed To Resist Fractures Under Heavy Vibration.
  • .050" Stock.
  • Stud Size: 5/16
  • Wire Gauge: 8
