• Offers greater protection under the most adverse environmental conditions.
• Provides additional strain relief, abrasion protection, optimum waterproofing, and environmental protection in submersible, above ground, or direct buried applications.
• Seals can be made over lead, steel, aluminum, and copper.
• Eliminates grease, tape, and epoxy methods.
• Thick wall insulation protects through 2,000 volts.
• Rated for continuous operating temperature up to 90°C.
• Heat source of 250° F. to 275° F. needed to shrink tubing.

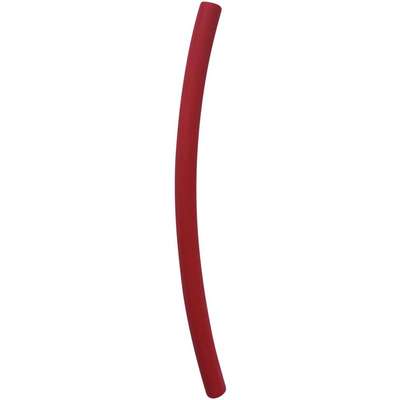

• Color: Red

MEASUREMENTS:

• Length: 6"
• Approximate Fraction Size: 1/4
• Internal Diameter:
  • Mininum Expanded: 0.300"
  • Maximum Recovered: 0.100"
• Wall Thickness:
  • Expanded: 0.025"
  • Recovered: 0.060"
• Recommended Cable Size: 18 thru 14 AWG
• NOTE: This size is not UL approved.

• Catalog
• Tech Specs
• Warnings
• Related Items
• Assortments
• Cross References

Product Category:	E Electrical Products
Product Group:	114 Heat Shrink Tubing
Online Catalog Page:	E29
Vol. 21 PDF Catalog Page:	E29
Vol. 20 PDF Catalog Page:	E27

Color:	Red
Expanded Diameter:	0.3 IN
Length:	6 IN
Wall Thickness:	0.035 IN

MSDS sheet Available for this item

ELECTRIC HEAT GUN [1]	TERMINALS NONINSULATED ELCTRCL	MICRO TORCH HANDS FREE 2500 F [1]	DIELECTRIC GREASE [1]
SEAL-A-SPLICE III 1/4x6 BLACK [2]

116-1

ASSORT HD HEAT SHRINK TUBING

	UNSPSC CODES		39121721
	VMRS (ATA) CODES		053-007-002
