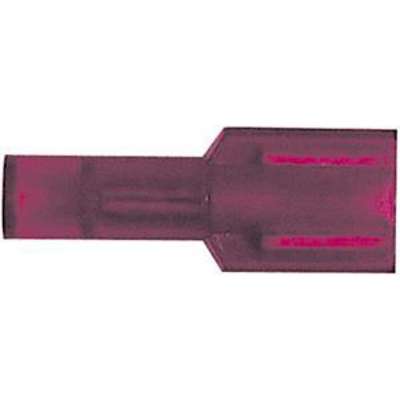

Imperial Nycrimp Female Quick Disconnect Terminal, Red, 22-18 AWG
Hover over image to magnify
Technical Specifications
Brand
IMPERIAL
Shipping Weight
0.24 lb.
Color Family
Red
Tab Thickness
0.0318 in.
Connection Material
Tin Plated Brass
Tab Width
1/4 in.
Connection Type
Female
Temperature Range (Deg. C)
-65 to +105 deg. C
Diameter
0.164 in.
Temperature Range (Deg. F)
-85 to +221 deg. F
Insulation Material
Nylon
Trade Name
NYCRIMP
Item
Terminal
Voltage Range
600 V
Nylon Terminal Connector
Female Quick Disconnect
Wire Gauge
22-18 AWG
Package Quantity
100
Product Description
Nylon Insulated Terminal
- Nycrimp® Nylon Insulated Quick Disconnect Female Terminal.
- High Temperature Flared Nylon Insulation.
- Wire Range: 22-18 Gauge
- Tab Size: Width: .250, Thickness: .030
- Color: Red
- Recommended Mate, Part No. 71025 .
Compliance & Restrictions
Lot Tracked Item Details
Documents
Item Barcode
Red Fem Quick Disc
| Name | Item | Description | |
|---|---|---|---|
 | GROTE VENDOR ITEMS ONLY | 83-3187 | 22 18 WIRE FEMLE QK SLD |
 | UNSPSC CODES | 39121432 | 22 18 WIRE FEMLE QK SLD |
 | VMRS (ATA) CODES | 053-007-002 | 22 18 WIRE FEMLE QK SLD |
